Festo
8150872

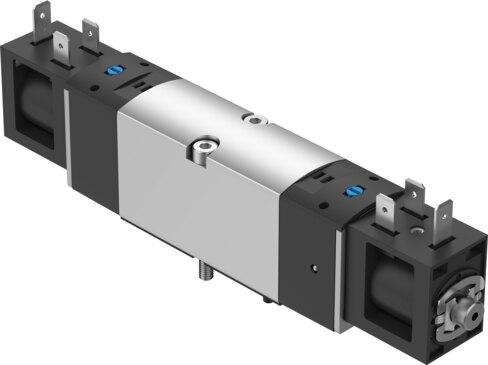

Solenoid valve VSVA-BK-P53E-D-A1-1B2
The Festo part number 8150872 is an electrical 5/3 exhausted industrial component featuring a 26 mm valve size, a piston slide structural design with a soft sealing principle, and a nominal width of 6.4 mm. It delivers a normal nominal flow rate of 900 l/min according to DIN 1343 through a sub-base pneumatic working port conforming to ISO 15407-1, operating on 24V DC within a pressure range of 0.3 MPa to 0.8 MPa. Additional attributes include internal pilot air supply, mechanical spring reset, adjustable exhaust air function, IP65 protection with a plug socket, and both detenting and non-detenting manual overrides. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8150872
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8150872.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Electrical
- Valve size
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 900 l/min
- Pneumatic working port
- Sub-base, size 26 mm according to ISO 15407-1
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston slide with sealing ring
- Reset method
- Mechanical spring
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 6.4 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 15407-1
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Negative overlap
- Signal status display
- With accessories
- b-value
- 0.29
- C value
- 3.99 l/sbar
- Flow rate of pneumatic valve
- 924 l/min
- Flow rate of pneumatic valve on individual sub-base
- 924 l/min
- Optimized ow rate of pneumatic valve pneumatically concatenated ow
- 885 l/min
- Switching time off
- 36.2 ms
- On switching time
- 11.9 ms
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8150872. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
