Festo
8150873
Solenoid coil VACF-B-R3-1RAL
Festo part number 8150873 is an electrical industrial component featuring a 100% duty cycle, Class H insulation, and a nominal pick-up current per solenoid coil of 138 mA up to 70 ms with a current reduction to 50 mA after 70 ms. Certified by c UL us - recognized (OL) with UL certificate issuing authority MH18122, it conforms to IEC 61010-1 and ISO 20401 standards while carrying CE and UKCA markings per EMC and RoHS directives. The unit offers an IP65 degree of protection, IK06 impact energy value, LED signal status display, and can be mounted in any position within a medium temperature range of -20 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8150873
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8150873.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Conforms to standard
- IEC 61010-1 | ISO 20401
- Impact energy value
- IK06
- Signal status display
- LED
- Duty cycle
- 100%
- Insulation class
- H
- Enameled wire insulation class
- H
- Nominal pick-up current per solenoid coil
- 138 mA up to 70 ms
- Nominal current with current reduction
- 50 mA after 70 ms
- Coil characteristics
- 24VDC:NS1,2:HS3.3
- Permissible voltage uctuations
- +/- 10%
- Certication
- c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Certicate issuing authority
- UL MH18122
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...60 °C
- Degree of protection
- IP65
- Ambient temperature
- -20 °C...60 °C
- Product weight
- 49.5 g
- Max. cable length
- 30 m
- Electrical connection 1, connection type
- Plug

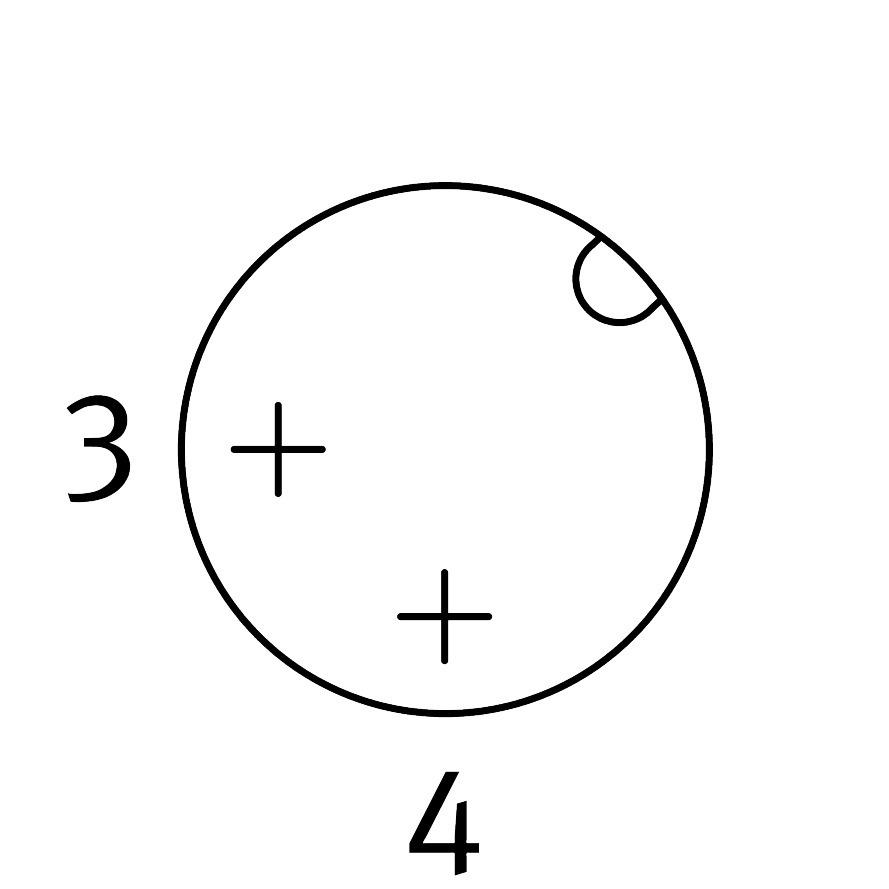

- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 2
- Electrical connection 1, type of mounting
- Screw-type lock
