Festo
8150874
Solenoid coil VACF-B-R8-1L
The Festo part number 8150874 is an electrical industrial component featuring a 24 V DC, 3.4 W coil with Class H insulation and permissible voltage fluctuations of +/- 10%. Certified by UL under certificate UL MH18122 and recognized as c UL us (OL), this part conforms to IEC 61010-1 and ISO 20401 standards with an IK06 impact energy rating and an IP65 degree of protection. It operates at an ambient and medium temperature range of -20 to 60 °C (restricted to -20 to 50 °C for block mounting), a 100% duty cycle, moderate corrosion resistance class (CRC 2), and VDMA24364-B1/B2-L LABS conformity. Weighing 48.5 g, the unit includes an LED signal status display, plug electrical connection 1, and supports any mounting position. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8150874
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8150874.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Conforms to standard
- IEC 61010-1 | ISO 20401
- Impact energy value
- IK06
- Signal status display
- LED
- Duty cycle
- 100%
- Insulation class
- H
- Enameled wire insulation class
- H
- Coil characteristics
- 24 V DC: 3.4 W
- Permissible voltage uctuations
- +/- 10%
- Certication
- c UL us - recognized (OL)
- Certicate issuing authority
- UL MH18122
- Restricted ambient and media temperature
- -20 - 50 °C | for block mounting
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...60 °C
- Degree of protection
- IP65
- Ambient temperature
- -20 °C...60 °C
- Product weight
- 48.5 g
- Electrical connection 1, connection type
- Plug

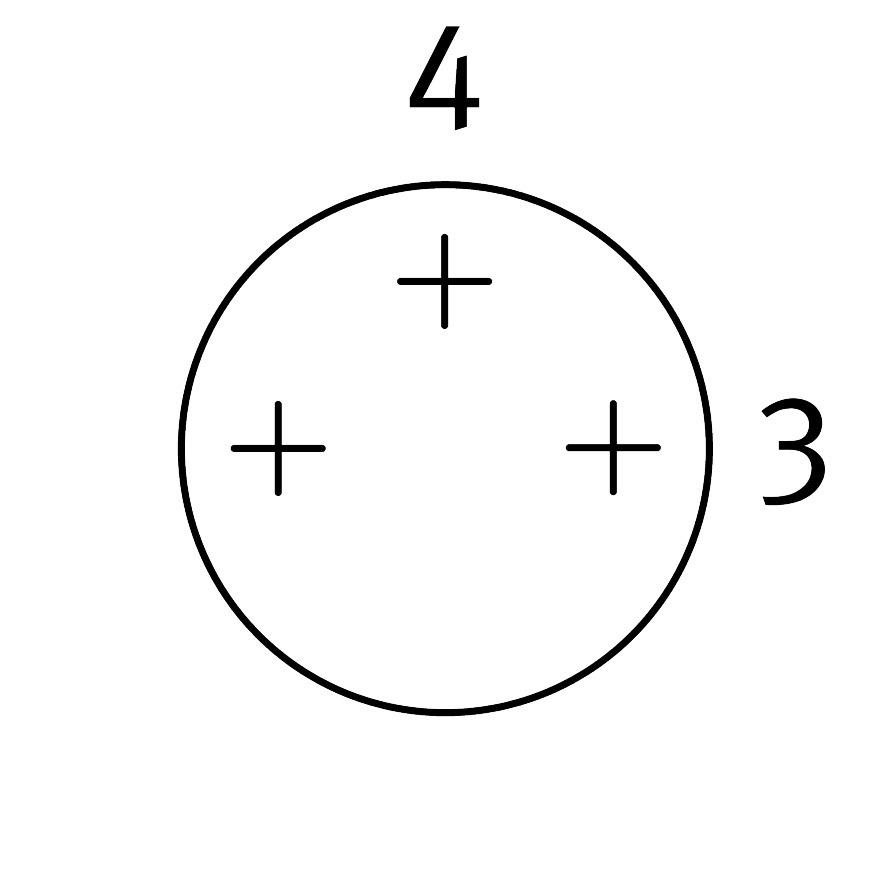

- Electrical connection 1, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 1, number of pins/wires
- 3
- Electrical connection 1, type of mounting
- Screw-type lock
- Type of mounting
- With knurled nut
- Note on materials
- RoHS compliant
- Housing material
- PA | Steel
- Solenoid coil material
- Copper | Steel
