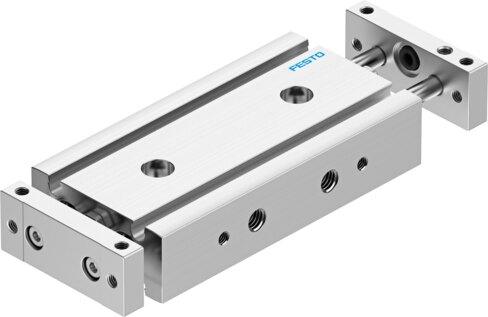

Reference imageConfirm configuration by manufacturer part number.
Festo
8150885
Twin cylinder DGTZ-GF-6- -J-T-P-A
The Festo part number 8150885 is a double-acting industrial component featuring a 6 mm piston diameter and an adjustable end position range of 10 mm with a stroke of 51 mm to 60 mm. Operating via two yokes, this guide incorporates elastic cushioning rings at both ends and a plain-bearing guide for compressed air media conforming to ISO 8573-1:2010 [7:4:4] within a 0.2 MPa to 0.8 MPa pressure range. Position sensing is achieved through a proximity switch across an ambient temperature span of -10 °C to 80 °C, while meeting ISO 14644-1 Class 5 cleanroom suitability and VDMA24364-S-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8150885
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8150885.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. stroke limit (hard)
- 51 mm
- Stroke
- 51 mm...60 mm
- Max. stroke limit (hard)
- 60 mm
- Adjustable end position range/length
- 10 mm
- Piston diameter
- 6 mm
- Drive unit operating mode
- Two yokes
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.2 MPa...0.8 MPa | 2 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-S-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Impact energy in the end positions
- 0.01 Nm
- Max. payload as a function of the stroke at dened distance xs
- 1.2 N...1.3 N
- Theoretical force at 6 bar, retracting
- 18.6 N
- Theoretical force at 6 bar, advancing
- 18.6 N
- Moving mass
- 45.5 g...49.5 g
- Moving mass at 0 mm stroke
- 25.5 g
- Additional moving mass per 10 mm stroke
- 4 g
- Product weight
- 210 g...214 g
- Basic weight with 0 mm stroke
- 112 g
- Additional weight per 10 mm stroke
- 17 g
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8150885. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
