Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

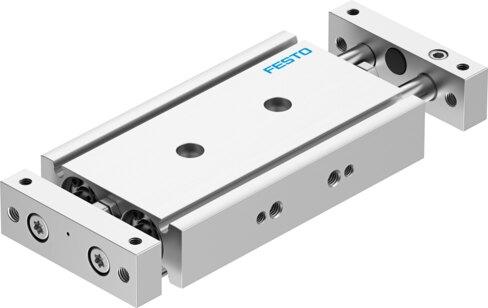

Reference imageConfirm configuration by manufacturer part number.
Festo
8150887
Twin cylinder DGTZ-GF-16- -J-T-P-A
Engineered by Festo with a double-acting mode of operation and dual yokes, part number 8150887 features a 16 mm piston diameter with an adjustable stroke range from 101 mm to 200 mm utilizing elastic cushioning rings at both ends. This plain-bearing guide functions with compressed air under an operating pressure of 0.12 MPa to 0.8 MPa across an ambient temperature range of -10 °C to 80 °C, incorporating position sensing via proximity switch. It achieves ISO 14644-1 Class 5 cleanroom suitability and VDMA24364 Zone III LABS conformity with a CRC rating of 1. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8150887
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8150887.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. stroke limit (hard)
- 101 mm
- Stroke
- 101 mm...200 mm
- Max. stroke limit (hard)
- 200 mm
- Adjustable end position range/length
- 10 mm
- Piston diameter
- 16 mm
- Drive unit operating mode
- Two yokes
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.12 MPa...0.8 MPa | 1.2 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Impact energy in the end positions
- 0.15 Nm
- Max. payload as a function of the stroke at dened distance xs
- 10.7 N...11.3 N
- Theoretical force at 6 bar, retracting
- 181 N
- Theoretical force at 6 bar, advancing
- 181 N
- Moving mass
- 293 g...453 g
- Moving mass at 0 mm stroke
- 133 g
- Additional moving mass per 10 mm stroke
- 16 g
- Product weight
- 767 g...1070 g
- Basic weight with 0 mm stroke
- 370 g
- Additional weight per 10 mm stroke
- 35 g
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8150887. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
