Festo
8150889

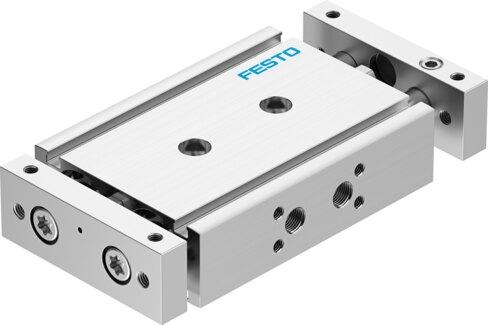

Twin cylinder DGTZ-GF-25- -J-T-P-A
The Festo 8150889 industrial component is a double-acting drive unit featuring a plain-bearing guide with two yokes, a 25 mm piston diameter, and an adjustable stroke ranging from 101 mm to 200 mm with hard limits at both ends. Operating within a pressure range of 0.12 MPa to 0.8 MPa (1.2 bar to 8 bar), this unit utilizes elastic cushioning rings at both ends to absorb 0.3 Nm of impact energy and incorporates position sensing via proximity switches. It operates on compressed air compliant with ISO 8573-1:2010 [7:4:4], accommodates optional oil lubrication, achieves ISO 14644-1 Class 5 cleanroom suitability, and functions across an ambient temperature range of -10 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8150889
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8150889.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. stroke limit (hard)
- 101 mm
- Stroke
- 101 mm...200 mm
- Max. stroke limit (hard)
- 200 mm
- Adjustable end position range/length
- 10 mm
- Piston diameter
- 25 mm
- Drive unit operating mode
- Two yokes
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.12 MPa...0.8 MPa | 1.2 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-S-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Impact energy in the end positions
- 0.3 Nm
- Max. payload as a function of the stroke at dened distance xs
- 25.8 N...27.5 N
- Theoretical force at 6 bar, retracting
- 454 N
- Theoretical force at 6 bar, advancing
- 454 N
- Moving mass
- 675 g...1031 g
- Moving mass at 0 mm stroke
- 319 g
- Additional moving mass per 10 mm stroke
- 35.6 g
- Product weight
- 1680 g...2302 g
- Basic weight with 0 mm stroke
- 882 g
- Additional weight per 10 mm stroke
- 71 g
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8150889. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
