Festo
8150890

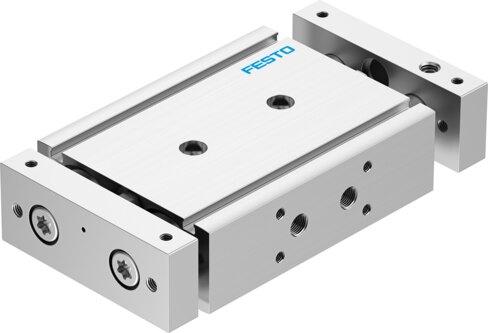

Twin cylinder DGTZ-GF-32- -J-T-P-A
This Festo industrial component features a 32 mm piston diameter with a double-acting mode of operation and a stroke range from 101 mm to 200 mm, incorporating a plain-bearing guide and two yokes. The unit operates within a pressure range of 1.2 bar to 8 bar using compressed air as per ISO 8573-1:2010 [7:4:4], featuring elastic cushioning rings at both ends with an impact energy of 0.4 Nm. It includes an adjustable end position range of 10 mm, position sensing via proximity switch, and is rated for ambient temperatures from -10 °C to 80 °C with ISO 14644-1 Class 5 cleanroom suitability. Submit the exact part number, quantity, and application requirements for an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8150890
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8150890.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Min. stroke limit (hard)
- 101 mm
- Stroke
- 101 mm...200 mm
- Max. stroke limit (hard)
- 200 mm
- Adjustable end position range/length
- 10 mm
- Piston diameter
- 32 mm
- Drive unit operating mode
- Two yokes
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Plain-bearing guide
- Structural design
- Guide
- Position sensing
- Via proximity switch
- Operating pressure
- 0.12 MPa...0.8 MPa | 1.2 bar...8 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -10 °C...80 °C
- Impact energy in the end positions
- 0.4 Nm
- Max. payload as a function of the stroke at dened distance xs
- 30.7 N...32.7 N
- Theoretical force at 6 bar, retracting
- 724 N
- Theoretical force at 6 bar, advancing
- 724 N
- Moving mass
- 1275.5 g...1895.5 g
- Moving mass at 0 mm stroke
- 655.5 g
- Additional moving mass per 10 mm stroke
- 62 g
- Product weight
- 2898 g...3908 g
- Basic weight with 0 mm stroke
- 1628 g
- Additional weight per 10 mm stroke
- 114 g
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
