Festo
8151587

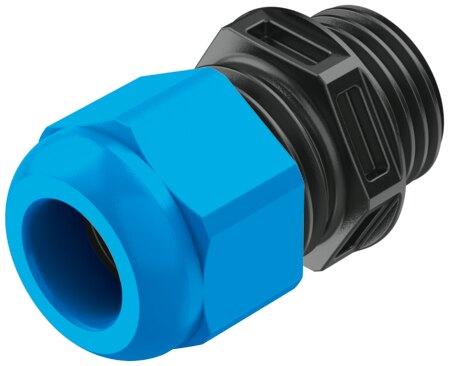

Cable fitting NETC-M20-PBU-T26-EX4-E
The Festo part number 8151587 is an M20x1.5 industrial component weighing 13 g with a blue and black PA cable connector, EPDM seals, and RoHS compliance, pack size 1. Featuring IP66 and IP68 protection up to 5 bar for 30 minutes alongside ATEX category II 2G and II 2D ratings with Ex eb IIC Gb and Ex tb IIIC Db ignition protection, this unit operates in ambient temperatures from -40 °C to 75 °C and explosive atmospheres within -40°C <= Ta <= +75°C. It carries IEC-EX EPL Gb and EPL Db certifications, CE markings under the ATEX and RoHS directives, VDMA24364 Zone III LABS conformity, and accommodates cable diameters from 7 mm to 13 mm. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8151587
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8151587.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -40 °C...75 °C
- Degree of protection
- IP66 | IP68
- Note on degree of protection
- IP68 at 5 bar for 30 minutes
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex eb IIC Gb
- Type of (ignition) protection for dust
- Ex tb IIIC Db
- Explosive ambient temperature
- -40°C <= Ta <= +75°C
- Explosion protection certication outside the EU
- EPL Db (IEC-EX) | EPL Gb (IEC-EX)
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- Size
- M20x1.5
- Cable diameter
- 7 mm...13 mm
- Color
- Blue/black
- Material for cable connector
- PA
- Seals material
- EPDM
- Product weight
- 13 g
- Pack size
- 1
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Note on materials
- RoHS compliant
