Festo
8151588

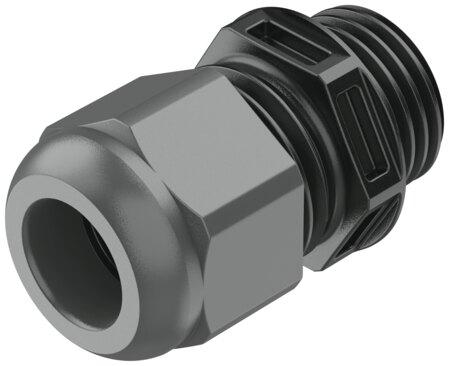

Cable fitting NETC-M20-PBK-T26-EX4-E
The Festo part number 8151588 is an M20x1.5 industrial component made of black PA with EPDM seals, weighing 13 g with a pack size of 1. It operates within an ambient temperature range of -40 °C to 75 °C and provides IP66 and IP68 degrees of protection, including IP68 at 5 bar for 30 minutes, accommodating cable diameters from 7 mm to 13 mm. Certified for explosive atmospheres with ATEX categories II 2G and II 2D, IEC-EX EPL Gb and EPL Db ratings, and ignition protection types Ex eb IIC Gb and Ex tb IIIC Db, this RoHS-compliant component features VDMA24364 Zone III LABS conformity and carries CE marking per the EU explosion protection and RoHS directives. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8151588
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8151588.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -40 °C...75 °C
- Degree of protection
- IP66 | IP68
- Note on degree of protection
- IP68 at 5 bar for 30 minutes
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex eb IIC Gb
- Type of (ignition) protection for dust
- Ex tb IIIC Db
- Explosive ambient temperature
- -40°C <= Ta <= +75°C
- Explosion protection certication outside the EU
- EPL Db (IEC-EX) | EPL Gb (IEC-EX)
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- Size
- M20x1.5
- Cable diameter
- 7 mm...13 mm
- Color
- Black
- Material for cable connector
- PA
- Seals material
- EPDM
- Product weight
- 13 g
- Pack size
- 1
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Note on materials
- RoHS compliant
