Festo
8151589

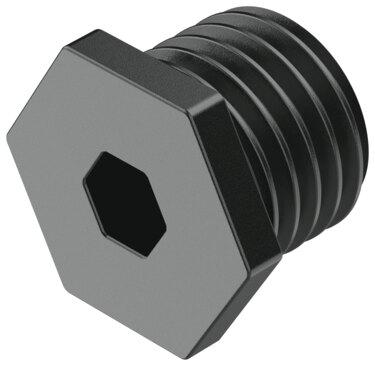

Plug screw NETC-P-M20-PBK-T26-EX4-E
The Festo 8151589 is an M20x1.5 black industrial component constructed from PA material with EPDM seals, weighing 5 g and packaged in a pack size of 1. It operates within an ambient and explosive temperature range of -40 °C to 75 °C and achieves IP66 and IP68 protection, the latter rated at 5 bar for 30 minutes. This unit features ATEX categories II 2G and II 2D with Ex eb IIC Gb gas and Ex tb IIIC Db dust ignition protection, along with IEC-EX EPL Gb and EPL Db certifications outside the EU. Compliance includes CE marking per the EU explosion protection directive and RoHS directive, VDMA24364 Zone III LABS conformity, and RoHS material compliance. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8151589
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8151589.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -40 °C...75 °C
- Degree of protection
- IP66 | IP68
- Note on degree of protection
- IP68 at 5 bar for 30 minutes
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex eb IIC Gb
- Type of (ignition) protection for dust
- Ex tb IIIC Db
- Explosive ambient temperature
- -40°C <= Ta <= +75°C
- Explosion protection certication outside the EU
- EPL Db (IEC-EX) | EPL Gb (IEC-EX)
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- Size
- M20x1.5
- Color
- Black
- Material for cable connector
- PA
- Seals material
- EPDM
- Product weight
- 5 g
- Pack size
- 1
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Note on materials
- RoHS compliant
