Festo
8151591

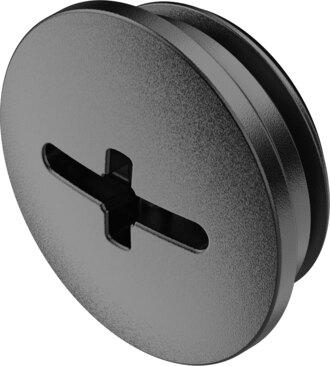

Plug screw NETC-P-M20-PBK-T14
The Festo 8151591 industrial component is an M20x1.5 black cable connector manufactured from PA with EPDM seals, weighing 2 g with a pack size of 1. It provides IP66 and IP68 protection, the latter rated at 5 bar for 30 minutes, alongside an ambient temperature range of -40 °C to 100 °C and VDMA24364 Zone III LABS conformity. This RoHS-compliant part bears the CE marking per the EU RoHS directive. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8151591
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8151591.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -40 °C...100 °C
- Degree of protection
- IP66 | IP68
- Note on degree of protection
- IP68 at 5 bar for 30 minutes
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- Size
- M20x1.5
- Color
- Black
- Material for cable connector
- PA
- Seals material
- EPDM
- Product weight
- 2 g
- Pack size
- 1
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8151591. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
