Festo
8152201

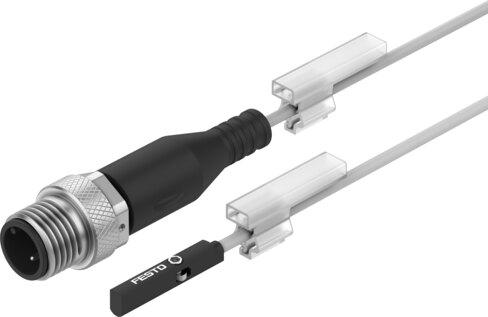

Proximity switch SMT-10M-PS-24V-E-0,3-L-M12
The Festo part number 8152201 is a magneto-resistive industrial component designed for round slots with a measured variable of position and a repetition accuracy of 0.2 mm. It features a PNP switching output, N.O. contact switching element function, max. switching frequency of 130 Hz, and an ambient temperature range of -40 °C to 70 °C. Certified with the RCM compliance mark, CE marking as per EU EMC and RoHS directives, and UKCA marking, this oil-resistant, halogen-free, and RoHS compliant unit has a max. output current of 100 mA and a max. switching capacity DC of 2.8 W, with application details available at https://www.festo.com/Drive-Sensor-Overview. Submit your exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8152201
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8152201.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Design
- For round slot
- Conforms to standard
- EN 60947-5-2
- Certication
- RCM compliance mark
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Special features
- Oil-resistant
- Note on materials
- RoHS compliant | Halogen-free
- Application note
- https://www.festo.com/Drive-Sensor-Overview
- Measured variable
- Position
- Measuring principle
- Magneto-resistive
- Ambient temperature
- -40 °C...70 °C
- Repetition accuracy
- 0.2 mm
- Switching output
- PNP
- Switching element function
- N.O. contact
- On time
- 1.3 ms
- Switch-off time
- 4.2 ms...7.3 ms
- Max. switching frequency
- 130 Hz
- Max. output current
- 100 mA
- Max. output current in mounting kits
- 50 mA
- Max. switching capacity DC
- 2.8 W
- Max. switching capacity DC in mounting kits
- 1.5 W
- Voltage drop
- 1.7 V
- Residual current
- 0.05 mA
- Short-circuit protection
- Yes
- Overload protection
- Yes
- Rated operating voltage DC
- 24 V
- DC operating voltage range
- 5 V...30 V
- Residual ripple
- 10%
- Reverse polarity protection
- for all electrical connections
