Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

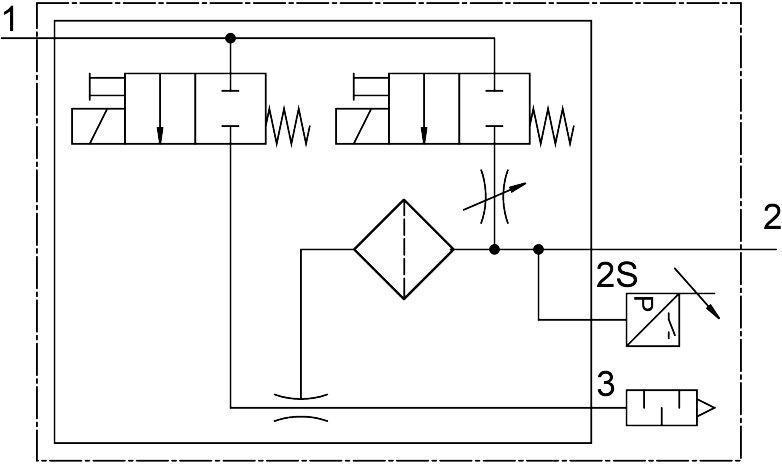

Reference imageConfirm configuration by manufacturer part number.
Festo
8152242
Vacuum generator OVEL-10-H-15-PQ-VQ6-UA-C-A-V1PNLK-R8
This Festo industrial component features a 0.95 mm nominal width Laval nozzle in a 15 mm T-shape structural design with an open muffler construction type and any mounting position. It delivers high vacuum and standard ejector characteristics with a max vacuum of 92%, operating at a nominal pressure of 0.4 MPa (4 bar) and an operating pressure range of 0.2 MPa to 0.7 MPa (2 bar to 7 bar). The unit integrates an electric ejector pulse, flow control valve, pressure sensor, electric on-off valve, filter, and open muffler, along with a piezoresistive pressure sensor with a 2-digit LED display and non-detenting manual override. Configuration is achieved via IO-Link, teach-in, or display and keys using switchable N/C or N/O contact functions and freely programmable switching parameters with a 40 µm filtration grade. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8152242
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8152242.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width of Laval nozzle
- 0.95 mm
- Width dimension
- 15 mm
- Muffler construction type
- Open
- Mounting position
- Any
- Ejector characteristics
- High vacuum | Standard
- Grade of ltration
- 40 µm
- Manual override
- Non-detenting
- Integrated function
- Ejector pulse, electric | Flow control valve | Pressure sensor | Electric on-off valve | Filter | Muffler open
- Structural design
- T-shape
- Switching element function
- N/C contact/N/O contact, switchable
- Switching function
- Freely programmable
- Valve function
- Closed
- Method of measurement
- Piezoresistive pressure sensor with display
- Display type
- LED indicator | 2-digit
- Setting options
- IO-Link® | Teach-in | Via display and keys
- Operating pressure for max. suction rate
- 0.4 MPa | 4 bar | 58 psi
- Operating pressure
- 0.2 MPa...0.7 MPa | 2 bar...7 bar | 29 psi...101.5 psi
- Operating pressure for max. vacuum
- 0.38 MPa | 3.8 bar | 55.1 psi
- Max. vacuum
- 92 %
- Nominal operating pressure
- 0.4 MPa | 4 bar
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8152242. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
