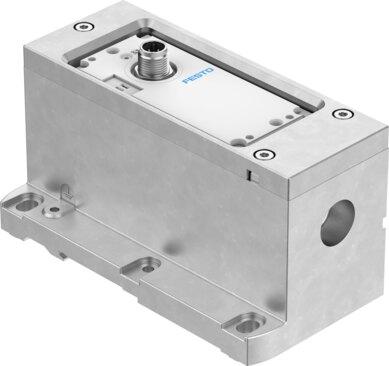

Name: Festo 8152353 Electrical interface VABA-S6-1-PT
Brand: Festo

Electrical interface VABA-S6-1-PT

The Festo part number 8152353 is an industrial component supporting up to 16 valve positions and 32 solenoid coils with a nominal operating voltage of 24 V DC and 4 Vss residual ripple. Featuring IO-Link communication via a 5-pin device connection technology adhering to protocol version V 1.1, it operates at a 38.4 kbps baud rate with a 3.2 ms minimum cycle time and supports cable lengths up to 20 meters. This unit includes separate reverse polarity protection for the Power System and Power Load, a moderate corrosion resistance class (CRC 2), VDMA24364-B2-L LABS conformity, and a product weight of 690 g. Submit your exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8152353
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8152353.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Reverse polarity protection: Separate for Power System (PS) and Power Load (PL)
Max. no. of valve positions: 16
Max. no. of solenoid coils: 32
Baud rate: 38.4 kbps
Intrinsic current consumption at nominal operating voltage for: Typically 30 mA
Intrinsic current consumption at nominal operating voltage load: Typically 30 mA
Nominal operating voltage DC: 24 V
Residual ripple: 4 Vss
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Product weight: 690 g
IO-Link®, Connection technology: Device 5-pin
IO-Link®, protocol version: Device V 1.1
IO-Link®, communication mode: COM2 (38,4 kBd)
IO-Link®, port class: Device B
IO-Link®, number of ports: Device 1
IO-Link®, process data width OUT: Device 1-4 byte
IO-Link®, minimum cycle time: Device 3.2 ms
Max. cable length: 20 m
Communication types: IO-Link®
Nominal conductor cross section: 1 mm²
Note on materials: RoHS compliant
Cover material: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8152353. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
