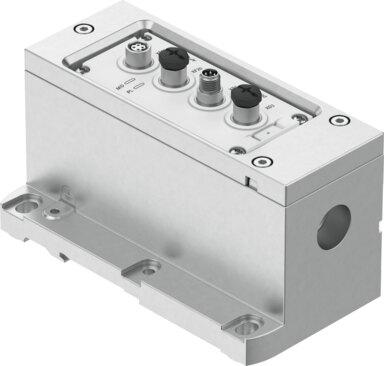

Reference imageConfirm configuration by manufacturer part number.
Festo
8152356
Electrical interface VABA-S6-1-AP
The Festo part number 8152356 is an industrial component measuring 71 mm x 142 mm x 84 mm with an upward connection position and built-in reverse polarity protection. It operates on a nominal DC voltage of 24 V for electronics, sensors, and loads, featuring internal electronic fuse short-circuit protection per channel alongside module diagnostics and internal communication fault detection via LED. This module supports a maximum of 12 valve positions and 24 solenoid coils, utilizing a max power supply of 2 x 4 A with required external fusing and SELV/PELV fixed power supplies. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8152356
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8152356.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Connection position
- up
- Reverse polarity protection
- Yes
- Diagnostics via LED
- Diagnostics per module | Load power supply
- Diagnose per internal communication
- Load switch-off | Electronics/sensors overvoltage | Overvoltage load | Electronics/sensors undervoltage | Undervoltage load
- Max. no. of valve positions
- 12
- Max. no. of solenoid coils
- 24
- Module parameters
- Conguration of voltage monitoring, load supply PL | Response in error state
- Dimensions W x L x H
- 71 mm x 142 mm x 84 mm
- Fuse protection (short circuit)
- Internal electronic fuse per channel
- Intrinsic current consumption at nominal operating voltage for
- Typically 34 mA
- Intrinsic current consumption at nominal operating voltage load
- Typically 16 mA
- Power failure buffering of load
- 3 ms
- Note regarding operating voltage
- SELV/PELV xed power supplies required | Note voltage drop
- Max. power supply
- 2 x 4 A (external fuse required)
- Nominal operating voltage DC for electronics/sensors
- 24 V
- Nominal operating voltage DC load
- 24 V
- Nominal operating voltage DC
- 24 V
- Power failure buffering
- 10 ms
- Permissible voltage uctuations for electronics/sensors
- ±25%
- Permissible voltage uctuations load
- ±10%
- Power supply, function
- Incoming electronics/sensors and load
- Power supply, type of connection
- Plug
- Power supply, connection technology
- M8x1, A-coded as per EN 61076-2-104
- Power supply, number of pins/wires
- 4
- Voltage forwarding, function
- Outgoing electronics/sensors and load
- Voltage forwarding, connection type
- Socket
