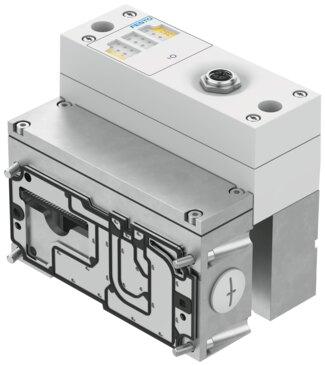

Name: Festo 8152436 Pneumatic interface VABA-S6-1-X2-F2-CB-AL
Brand: Festo

Pneumatic interface VABA-S6-1-X2-F2-CB-AL

The Festo part number 8152436 is an industrial component featuring a Type 44, VTSA-F-CB valve manifold interface supporting up to 12 double-solenoid or 24 single-solenoid valve positions. It operates within a 21.6 V to 26.4 V DC range and provides diagnostics for wire breaks, short circuits, and undervoltage of pneumatic valves, alongside comprehensive parameterization including failsafe, forcing, idle mode, and module monitoring. Rated to IP65 with vibration and shock resistance meeting severity level 2 as per FN 942017 and EN 60068 standards, this module conforms to EU and UK EMC and RoHS directives with a corrosion resistance class of CRC 0. Submit the exact part number, quantity, and application requirements for a formal price and lead-time quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8152436
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8152436.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Valve manifold interface: Type 44, VTSA-F-CB
Diagnostics: Wire break per valve coil | Short circuit of pneumatic valves | Undervoltage of pneumatic valves
Max. no. of valve positions: 12 for double-solenoid valves | 24 for single-solenoid valves
LED indicators: 1 group diagnostics
Parameterization: Failsafe per channel | Forcing per channel | Idle mode per channel | Module monitoring
Fuse protection (short circuit): Internal electronic fuse per pneumatic valve output
DC operating voltage range: 21.6 V...26.4 V
Intrinsic current consumption at nominal operating voltage: Typ. 15 mA for valves without CPX-FVDA-P2 | Typ. 25 mA for electronics with CPX-FVDA-P2
Max. power supply per channel: 0.2 A
Max. residual current per module: 2 A
Nominal operating voltage DC: 24 V
Electrical isolation between channel and internal bus: Yes, when using an additional supply for the pneumatic valves
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C...60 °C
Degree of protection: IP65
Ambient temperature: -5 °C...50 °C
Product weight: 1562 g
Electrical actuation: Fieldbus
Electrical connection output, function: Safe digital output

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8152436. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
