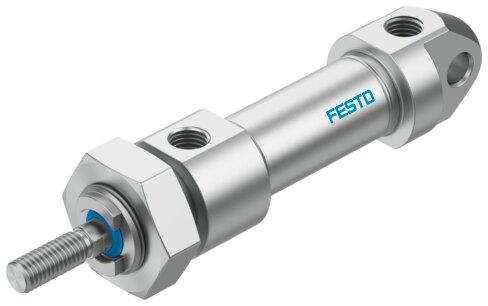

Name: Festo 8152559 Standards-based cylinder CRDSNU-20-20-P-A
Brand: Festo

Standards-based cylinder CRDSNU-20-20-P-A

The Festo part number 8152559 is a double-acting industrial component featuring a 20 mm piston diameter, a 20 mm stroke, and an external M8 piston rod thread conforming to ISO 6432. Built with elastic cushioning rings at both ends, this unit operates on compressed air within a pressure range of 0.1 MPa to 1 MPa and delivers a theoretical retracting force of 158 N at 6 bar. It offers CRC 3 high corrosion stress resistance, ISO 14644-1 Class 5 cleanroom suitability, and position sensing via proximity switch for arbitrary mounting positions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8152559
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8152559.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 20 mm
Piston diameter: 20 mm
Piston rod thread: M8
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Conforms to standard: ISO 6432
Piston rod end: External thread
Structural design: Piston | Piston rod | Cylinder barrel
Position sensing: Via proximity switch
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 3 - High corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 5 according to ISO 14644-1
For use in the food industry: See declaration of conformity
Ambient temperature: -20 °C...80 °C
Impact energy in the end positions: 0.2 J
Theoretical force at 6 bar, retracting: 158 N
Theoretical force at 6 bar, advancing: 188 N
Moving mass at 0 mm stroke: 42 g
Additional moving mass per 10 mm stroke: 4 g
Basic weight with 0 mm stroke: 310 g
Additional weight per 10 mm stroke: 7 g
Type of mounting: With accessories
Pneumatic connection: G1/8
Note on materials: RoHS compliant
Cover material: high-alloy stainless steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8152559. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
