Festo
8152632

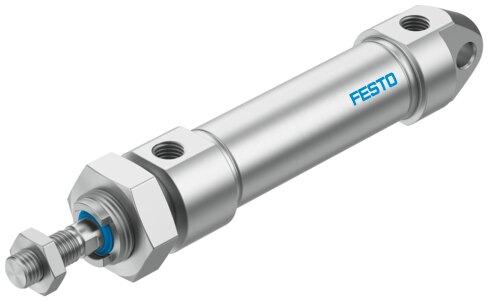

Standards-based cylinder CRDSNU-25-50-P-A
The Festo 8152632 is a double-acting industrial component featuring a 25 mm piston diameter, a 50 mm stroke, and an M10x1.25 external piston rod end conforming to ISO 6432. It operates at pressures from 1 to 10 bar with compressed air as per ISO 8573-1:2010 [7:4:4], utilizing elastic cushioning rings at both ends and position sensing via a proximity switch. Built with a Corrosion Resistance Class of 3 for high corrosion stress and ISO 14644-1 Class 5 cleanroom suitability, this unit functions across an ambient temperature range of -20 °C to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8152632
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8152632.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 50 mm
- Piston diameter
- 25 mm
- Piston rod thread
- M10x1.25
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 6432
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- For use in the food industry
- See declaration of conformity
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.3 J
- Theoretical force at 6 bar, retracting
- 247 N
- Theoretical force at 6 bar, advancing
- 295 N
- Moving mass at 0 mm stroke
- 73 g
- Additional moving mass per 10 mm stroke
- 6 g
- Basic weight with 0 mm stroke
- 410 g
- Additional weight per 10 mm stroke
- 11 g
- Type of mounting
- With accessories
- Pneumatic connection
- G1/8
- Note on materials
- RoHS compliant
- Cover material
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8152632. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
