Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

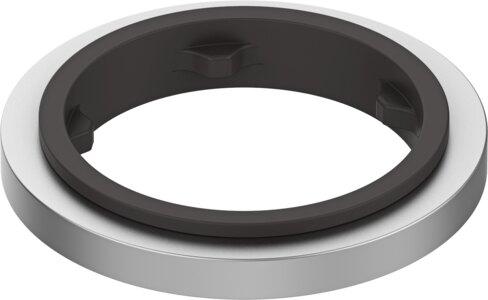

Reference imageConfirm configuration by manufacturer part number.
Festo
8153155
Sealing ring OL-M7
The Festo part number 8153155 is an industrial component manufactured in accordance with ISO 16030 featuring an M7 pneumatic connection, aluminum stops material, and HNBR seals. This RoHS-compliant part operates at pressures from -0.095 MPa to 3 MPa (-0.95 bar to 30 bar, or -13.775 psi to 435 psi) across an ambient temperature range of -40 °C to 100 °C, with a nominal tightening torque of 3 Nm at room temperature subject to a ±20% tolerance. It is rated for CRC 2 moderate corrosion stress, conforms to VDMA24364-B2-L LABS (PWIS) standards, and weighs 0.1 g with manual tightening capability at room temperature. Submit part number 8153155, quantity, and application requirements to receive an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8153155
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8153155.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- ISO 16030
- Operating pressure for entire temperature range
- -0.095 MPa...3 MPa | -0.95 bar...30 bar | -13.775 psi...435 psi
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...100 °C
- Manual tightening at RT
- Yes
- Nominal tightening torque
- 3 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 0.1 g
- Pneumatic connection
- M7
- Note on materials
- RoHS compliant
- Stops material
- Aluminum
- Seals material
- HNBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8153155. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
