Festo
8153156

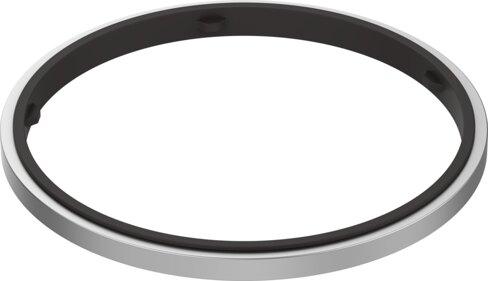

Sealing ring OL-1
The Festo industrial component, part number 8153156, complies with ISO 16030 and features an aluminum stops material with HNBR seals, a G1 pneumatic connection, and a product weight of 1.09 g. It operates within a pressure range of -0.095 MPa to 3 MPa (-0.95 bar to 30 bar, -13.775 psi to 435 psi) and an ambient temperature range of -40 °C to 100 °C, possessing a CRC rating of 2 for moderate corrosion stress and VDMA24364-B2-L LABS conformity. Designed for manual tightening at room temperature with a nominal tightening torque of 23 Nm at a ±20% tolerance, this RoHS-compliant part adheres to specific material notes. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8153156
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8153156.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- ISO 16030
- Operating pressure for entire temperature range
- -0.095 MPa...3 MPa | -0.95 bar...30 bar | -13.775 psi...435 psi
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...100 °C
- Manual tightening at RT
- Yes
- Nominal tightening torque
- 23 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 1.09 g
- Pneumatic connection
- G1
- Note on materials
- RoHS compliant
- Stops material
- Aluminum
- Seals material
- HNBR
