Festo
8153295

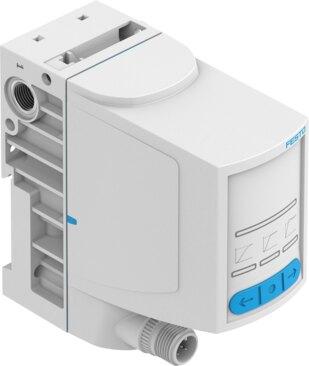

Proportional pressure control valve VPPI-5L-3-G18-0L2H-V1-S1BT
This Festo 8153295 3-way proportional pressure control valve features a 5 mm nominal width for both pressurization and exhaust, operating within a pressure range of 2 bar to 4 bar via direct electrical actuation. The poppet valve design includes a soft sealing principle, mechanical spring reset, non-reversible flow direction, and a normally closed safety position VPPI with a total leakage of 5 l/h. Electrical integration is supported by 0 - 10 V or PWM setpoint inputs, 100 kOhm input resistance, LED status display, short-circuit and reverse polarity protection for all connections, and a maximum cable length of 30 m in any mounting position measuring 42.2 mm by 95.3 mm by 94.3 mm. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8153295
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8153295.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width pressurization
- 5 mm
- Exhaust nominal width
- 5 mm
- Actuation type
- Electrical
- Sealing principle
- Soft
- Total leakage
- 5 l/h
- Flow direction
- Non-reversible
- Mounting position
- Any
- Structural design
- Poppet valve with spring return
- Short-circuit protection
- For all electrical connections
- Max. cable length
- 30 m
- Setpoint input
- 0 - 10 V | PWM
- Input resistance
- 100 kOhm
- Safety instructions
- Safety position VPPI, normally closed
- Reverse polarity protection
- for all electrical connections
- Reset method
- Mechanical spring
- Dimensions W x L x H
- 42.2 mm x 95.3 mm x 94.3 mm
- Type of control
- directly
- Valve function
- 3-way proportional pressure control valve
- Display type
- LED
- Operating pressure
- 2 bar...4 bar
- Pressure regulation range MPa
- 0 MPa...0.2 MPa
- Pressure regulation range
- 0 bar...2 bar
- Inlet pressure 1
- 0 bar...6 bar
- Inlet pressure 1 MPa
- 0 MPa...0.6 MPa
- Burst pressure
- 40 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 375 l/min
- Standard nominal ow rate 2-3
- 210 l/min
- DC operating voltage range
- 21.6 V...27.6 V
- Nominal current
- 0.15 A
- Max. current consumption
- 525 mA
