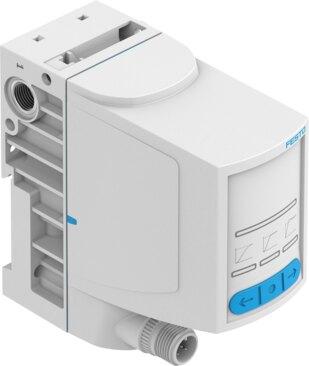

Reference imageConfirm configuration by manufacturer part number.
Festo
8153296
Proportional pressure control valve VPPI-5L-3-G18-0L6H-V1-S1BT
The Festo part number 8153296 is an electrical 3-way proportional pressure control valve featuring a 5 mm nominal width for both pressurization and exhaust, a soft sealing principle, and a poppet valve structural design with spring return. Operating within a pressure range of 6 bar to 8 bar, this directly controlled component offers a non-reversible flow direction, 0 - 10 V and PWM setpoint inputs with a 100 kOhm input resistance, total leakage of 5 l/h, and an LED display. Built with short-circuit and reverse polarity protection for all electrical connections, a maximum cable length of 30 m, and a normally closed safety position VPPI, the device measures 42.2 mm by 95.3 mm by 94.3 mm and supports any mounting position. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8153296
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8153296.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width pressurization
- 5 mm
- Exhaust nominal width
- 5 mm
- Actuation type
- Electrical
- Sealing principle
- Soft
- Total leakage
- 5 l/h
- Flow direction
- Non-reversible
- Mounting position
- Any
- Structural design
- Poppet valve with spring return
- Short-circuit protection
- For all electrical connections
- Max. cable length
- 30 m
- Setpoint input
- 0 - 10 V | PWM
- Input resistance
- 100 kOhm
- Safety instructions
- Safety position VPPI, normally closed
- Reverse polarity protection
- for all electrical connections
- Reset method
- Mechanical spring
- Dimensions W x L x H
- 42.2 mm x 95.3 mm x 94.3 mm
- Type of control
- directly
- Valve function
- 3-way proportional pressure control valve
- Display type
- LED
- Operating pressure
- 6 bar...8 bar
- Pressure regulation range MPa
- 0 MPa...0.6 MPa
- Pressure regulation range
- 0 bar...6 bar
- Inlet pressure 1
- 0 bar...13 bar
- Inlet pressure 1 MPa
- 0 MPa...1.3 MPa
- Burst pressure
- 40 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 900 l/min
- Standard nominal ow rate 2-3
- 480 l/min
- DC operating voltage range
- 21.6 V...27.6 V
- Nominal current
- 0.15 A
- Max. current consumption
- 525 mA
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8153296. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
