Festo
8153388

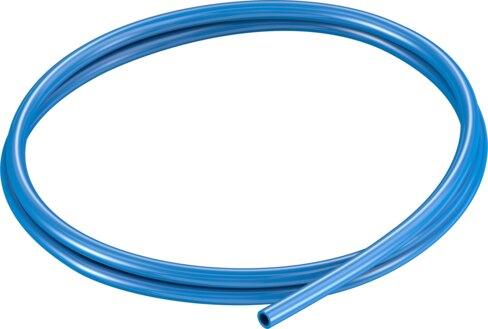

Plastic tubing PUN-H-F-6X1-BL
Manufactured by Festo, part number 8153388 is a blue TPE-U ether-based industrial tubing featuring a 6 mm outside diameter, a 4 mm inside diameter, and a Shore hardness of D 52 +/-3. It supports an operating pressure of -0.95 bar to 6 bar across its entire temperature range, handles compressed air and water, and is suitable for energy chains with a minimum bending radius of 10 mm. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8153388
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8153388.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 6 mm
- Bending radius relevant for ow rate
- 26 mm
- Inside diameter
- 4 mm
- Min. bending radius
- 10 mm
- Application note
- Tubing without printing | TPE-U, ether-based
- Tubing characteristics
- Suitable for energy chains
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: temperature-dependent operating pressure, see diagram, max. | 0.3 MPa at 0 - 60 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Material re test
- UL94 HB
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- For use in the food industry
- See declaration of conformity
- Ambient temperature
- -35 °C...60 °C
- Product weight by length
- 0.0181 kg/m
- Pneumatic connection
- For plug connection outside diameter 6 mm | For barbed tting, inside diameter 4 mm, with union nut
- Color
- Blue
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8153388. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
