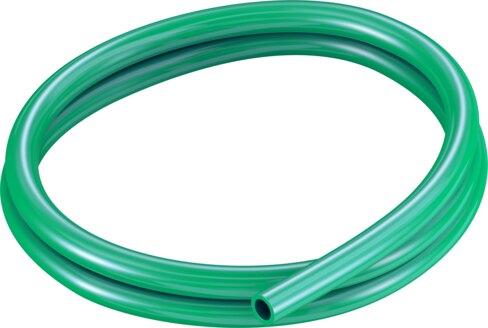

Name: Festo 8153412 Plastic tubing PUN-H-F-12X2-GN
Brand: Festo

Plastic tubing PUN-H-F-12X2-GN

This Festo industrial component (Part Number: 8153412) is a green, ether-based TPE-U tubing with a 12 mm outside diameter, an 8 mm inside diameter, a 33 mm minimum bending radius, and a 62 mm bending radius relevant for flow rate. Suitable for energy chains, it operates at pressures from -0.095 MPa to 0.6 MPa across its entire temperature range and accommodates compressed air as per ISO 8573-1:2010 [7:-:-] or liquid water. Please submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8153412
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8153412.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Outside diameter: 12 mm
Bending radius relevant for ow rate: 62 mm
Inside diameter: 8 mm
Min. bending radius: 33 mm
Application note: Tubing without printing | TPE-U, ether-based
Tubing characteristics: Suitable for energy chains
Operating pressure for entire temperature range: -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
Temperature-dependent operating pressure: -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
Information on operating pressure: Water: temperature-dependent operating pressure, see diagram, max. | 0.3 MPa at 0 - 60 °C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
Material re test: UL94 HB
LABS (PWIS) conformity: VDMA24364-B2-L
Cleanroom suitability, measured according to ISO 14644-14: Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
For use in the food industry: See declaration of conformity
Ambient temperature: -35 °C...60 °C
Product weight by length: 0.0723 kg/m
Pneumatic connection: For plug connection outside diameter 12 mm
Color: Green
Shore hardness: D 52 +/-3
Note on materials: RoHS compliant
Material of pneumatic tubing: TPE-U(PU)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8153412. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
