Festo
8153426

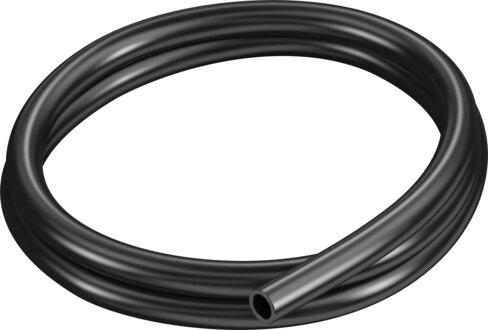

Plastic tubing PUN-H-F-16X2,5-SW
The Festo 8153426 is an ether-based TPE-U industrial component featuring a black unprinted exterior with an outside diameter of 16 mm and an inside diameter of 11 mm. Suitable for energy chains, this tubing operates across a temperature range of -35 °C to 60 °C with a temperature-dependent operating pressure from -0.095 MPa to 1 MPa and handles compressed air or liquid water. It complies with UL94 HB fire testing and VDMA24364-B2-L LABS conformity standards while offering RoHS compliance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8153426
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8153426.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Outside diameter
- 16 mm
- Bending radius relevant for ow rate
- 88 mm
- Inside diameter
- 11 mm
- Min. bending radius
- 38 mm
- Application note
- Tubing without printing | TPE-U, ether-based
- Tubing characteristics
- Suitable for energy chains
- Operating pressure for entire temperature range
- -0.095 MPa...0.6 MPa | -0.95 bar...6 bar | -13.775 psi...87 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: temperature-dependent operating pressure, see diagram, max. | 0.3 MPa at 0 - 60 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Material re test
- UL94 HB
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- For use in the food industry
- See declaration of conformity
- Ambient temperature
- -35 °C...60 °C
- Product weight by length
- 0.122 kg/m
- Pneumatic connection
- For plug connection outside diameter 16 mm
- Color
- Black
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8153426. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
