Festo
8153948
Solenoid coil VACS-C-E1-1
The Festo part number 8153948 is an electrical industrial component weighing 32 g with any mounting position, featuring 24 V DC at 2.6 W coil characteristics and permissible voltage fluctuations of +/- 10%. Constructed with class H insulation and enameled wire insulation, it operates within an ambient and medium temperature range of -20 to 60 °C, achieving IP65 protection, IK06 impact energy resistance, and CRC 2 moderate corrosion stress compliance under IEC 61010-1 standards. It connects via a type C plug with a 9.4 mm industry standard connection pattern, maintains a 100% duty cycle, and carries c UL us recognition from UL MH18122 for VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8153948
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8153948.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Actuation type
- Electrical
- Mounting position
- Any
- Conforms to standard
- IEC 61010-1
- Impact energy value
- IK06
- Duty cycle
- 100%
- Insulation class
- H
- Enameled wire insulation class
- H
- Coil characteristics
- 24 V DC: 2.6 W
- Permissible voltage uctuations
- +/- 10%
- Certication
- c UL us - recognized (OL)
- Certicate issuing authority
- UL MH18122
- Restricted ambient and media temperature
- -20 - 50 °C | for block mounting
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Temperature of medium
- -20 °C...60 °C
- Degree of protection
- IP65
- Ambient temperature
- -20 °C...60 °C
- Product weight
- 32 g
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connection technology

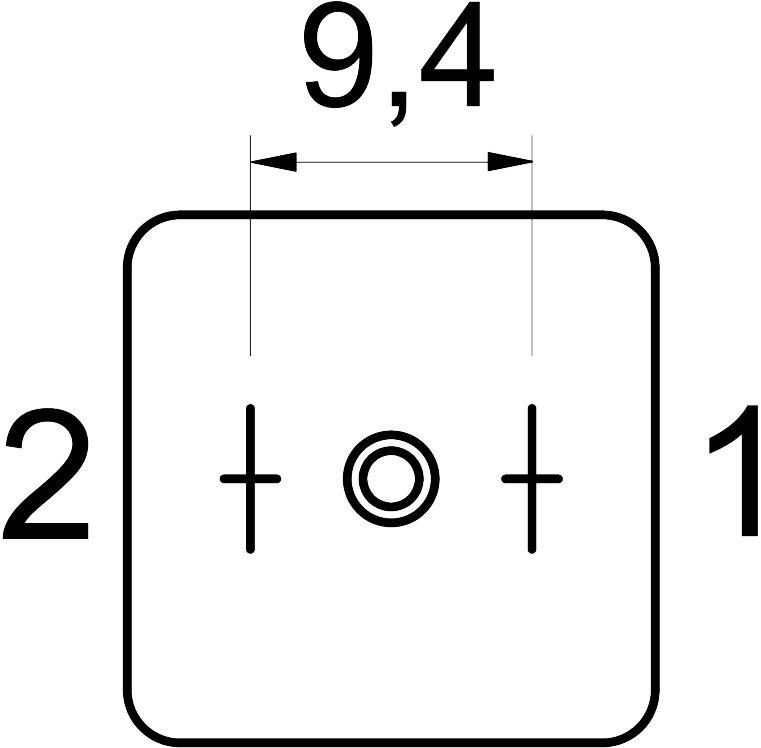

- Connection pattern type C as per industry standard, 9.4 mm
- Electrical connection 1, number of pins/wires
- 2
- Electrical connection 1, type of mounting
- Central screw M3
- Type of mounting
- With knurled nut
- Note on materials
- RoHS compliant
- Housing material
- PA | Steel
- Solenoid coil material
- Copper | Steel | Thermoplast
- Material of winding
- Copper
