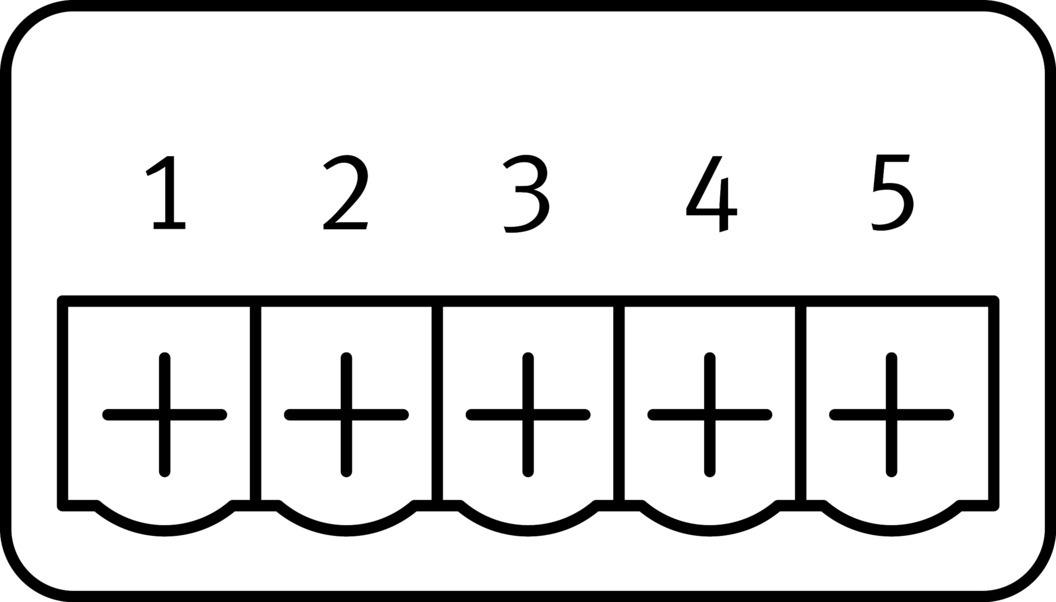

Name: Festo 8154039 Pneumatic interface VABA-S6-1-X5-F4
Brand: Festo

Pneumatic interface VABA-S6-1-X5-F4

The Festo part number 8154039 is an industrial component featuring a valve manifold interface for Type 44 VTSA and Type 45 VTSA-F, supporting up to 16 double-solenoid valves or 32 single-solenoid valves and solenoid coils. Measuring 70.5 mm by 160.65 mm by 102.6 mm, the module operates at a nominal voltage of 24 V DC for electronics and sensors with an internal cycle time of under 1 ms and comprehensive LED and internal communication diagnostics. It provides vibration and shock resistance to severity level 2 on wall mounting under SG2 conditions, along with reverse polarity protection and internal electronic fusing per pneumatic valve output. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8154039
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8154039.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Note on vibration resistance: SG2 on wall mounting
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Note on shock resistance: SG2 on wall mounting
Valve manifold interface: Type 44, VTSA | Type 45, VTSA-F
Reverse polarity protection: Yes
Diagnostics via LED: Diagnostics per module | Load power supply
Diagnose per internal communication: Load switch-oﬀ | Communication error | Short-circuit/overload in output signal | Electronics/sensors overvoltage | Overvoltage load | Electronics/sensors undervoltage | Undervoltage load
Max. no. of valve positions: 16 for double-solenoid valves | 32 for single-solenoid valves
Max. no. of solenoid coils: 32
Module code (hex/dec): 0x3045/12357d
Module parameters: Activation of diagnosis in case of overload/short circuit | Condition counter limit/actual value | Conguration of voltage monitoring, load supply PL | Response in error state
Internal cycle time: < 1 ms
Dimensions W x L x H: 70.5 mm x 160.65 mm x 102.6 mm
Fuse protection (short circuit): Internal electronic fuse per pneumatic valve output
Intrinsic current consumption at nominal operating voltage for: typically 27 mA
Intrinsic current consumption at nominal operating voltage load: typically 17 mA
Note regarding operating voltage: SELV/PELV xed power supplies required | Note voltage drop
Max. power supply: 2 x 16 A (external fuse required)
Nominal operating voltage DC for electronics/sensors: 24 V
Nominal operating voltage DC load: 24 V

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8154039. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
