Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

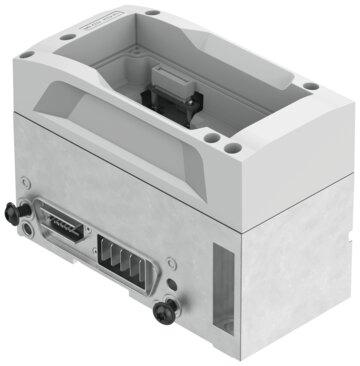

Reference imageConfirm configuration by manufacturer part number.
Festo
8154041
Pneumatic interface VABA-S6-1-X5-F5-CB
The Festo part number 8154041 is an industrial component featuring a Type 46 VTSA-F-CB valve manifold interface, a width of 70.5 mm, a length of 142 mm, and a height of 102.6 mm, with a module code of 0x3043/12355d and an internal cycle time under 1 ms. It supports a maximum of 12 valve positions for double-solenoid valves or 24 for single-solenoid valves and solenoid coils, operating on a nominal DC voltage of 24 V for both electronics/sensors and load with built-in reverse polarity protection and internal electronic fuse short-circuit protection per pneumatic valve output. Designed with transport application test vibration resistance and shock test shock resistance at severity level 2 on wall mounting, it provides module and load power supply LED diagnostics alongside internal communication diagnostics for communication errors, load switch-offs, short-circuits/overloads, and voltage thresholds. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8154041
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8154041.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Note on vibration resistance
- SG2 on wall mounting
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Note on shock resistance
- SG2 on wall mounting
- Valve manifold interface
- Type 46, VTSA-F-CB
- Reverse polarity protection
- Yes
- Diagnostics via LED
- Diagnostics per module | Load power supply
- Diagnose per internal communication
- Load switch-off | Communication error | Short-circuit/overload in output signal | Electronics/sensors overvoltage | Overvoltage load | Electronics/sensors undervoltage | Undervoltage load
- Max. no. of valve positions
- 12 for double-solenoid valves | 24 for single-solenoid valves
- Max. no. of solenoid coils
- 24
- Module code (hex/dec)
- 0x3043/12355d
- Module parameters
- Activation of diagnosis in case of overload/short circuit | Condition counter limit/actual value | Conguration of voltage monitoring, load supply PL | Response in error state
- Internal cycle time
- < 1 ms
- Dimensions W x L x H
- 70.5 mm x 142 mm x 102.6 mm
- Fuse protection (short circuit)
- Internal electronic fuse per pneumatic valve output
- Intrinsic current consumption at nominal operating voltage for
- Typically 40 mA
- Intrinsic current consumption at nominal operating voltage load
- typically 17 mA
- Note regarding operating voltage
- SELV/PELV xed power supplies required | Note voltage drop
- Nominal operating voltage DC for electronics/sensors
- 24 V
- Nominal operating voltage DC load
- 24 V
- Power failure buffering
- 10 ms
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8154041. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
