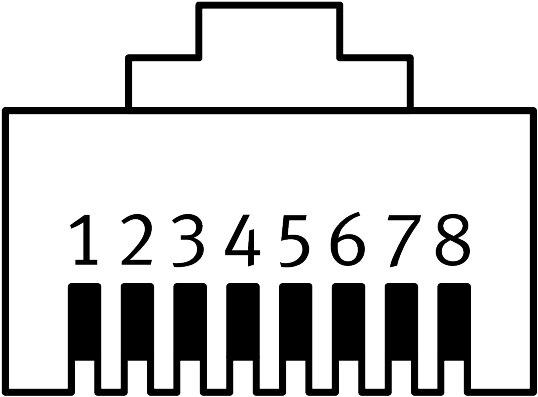

Reference imageConfirm configuration by manufacturer part number.
Festo
8155228
Connecting cable NEBC-R3G8M22-P-5-N-S-R3G8
This Festo industrial component, part number 8155228, is a 440 g square-designed plug featuring straight cable outlets and RJ45 connection technology with 8 pins and 8 occupied wires on both the field device and control sides. Connection 1 utilizes a screw-type lock for mounting, while the assembly conforms to the IEC 60603-7-3 standard without a label holder. It carries the RCM compliance mark and c UL us - Listed (OL) certification issued by UL E239998. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8155228
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8155228.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Conforms to standard
- IEC 60603-7-3
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- Certicate issuing authority
- UL E239998
- Cable designation
- Without label holder
- Product weight
- 440 g
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- RJ45
- Electrical connection 1, number of pins/wires
- 8
- Electrical connection 1, occupied pins/wires
- 8
- Electrical connection 1, type of mounting
- Screw-type lock
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- RJ45
- Electrical connection 2, number of pins/wires
- 8
- Electrical connection 2, occupied pins/wires
- 8
- Electrical connection 2, type of mounting
- Snap-locking
- DC operating voltage range
- 0 V...60 V
- Current rating at 40° C
- 1 A
- Shield
- Yes
- Transmission characteristics
- In accordance with category 5, EN 50173, class D | According to category 5, ISO/IEC 11801, class D
- Cable length
- 5 m
- Cable characteristic
- For static applications
- Bending radius, xed cable installation
- 30 mm
- Cable diameter
- 5.5 mm
- Cable diameter tolerance
- ± 0.2 mm
