Festo
8156135
Stepper motor EMMB-ST-42-L-SSB
The Festo 8156135 industrial component is an IM B5, IM V1, and IM V3 motor type conforming to IEC 60034 with an S1 rating class and thermal class B according to EN 60034-1. This unit features IP20 degree of protection with an IP40 engine shaft, a hybrid plug electrical connection 1 utilizing connection pattern L5 with 14 pins or wires, and an interface code 42A for the motor out. Operating conditions include an ambient temperature range of -15 °C to 40 °C (extendable up to 80 °C with a derating of -2%/°C), a max installation height of 4000 m (with derating of -1.0% per 100 m at 1000 m and above), a max winding temperature of 130 °C, and 0 to 90% non-condensating relative air humidity. RoHS compliant with a corrosion resistance class of 0, the component supports any mounting position and storage temperatures between -20 °C and 70 °C. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8156135
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8156135.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -15 °C...40 °C
- Note on ambient temperature
- up to 80°C with derating -2%/°C
- Max. installation height
- 4000 m
- Information on max. installation height
- with 1,000 m and longer only with derating of -1.0% per 100 m
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 0 - 90% | Non-condensating
- Conforms to standard
- IEC 60034
- Thermal class according to EN 60034-1
- B
- Max. winding temperature
- 130 °C
- Rating class according to EN 60034-1
- S1
- Motor type as per EN 60034-7
- IM B5 | IM V1 | IM V3
- Mounting position
- Any
- Degree of protection
- IP20
- Note on degree of protection
- IP40 engine shaft
- Interface code, motor out
- 42A
- Electrical connection 1, connection type
- Hybrid plug
- Electrical connection 1, connection technology

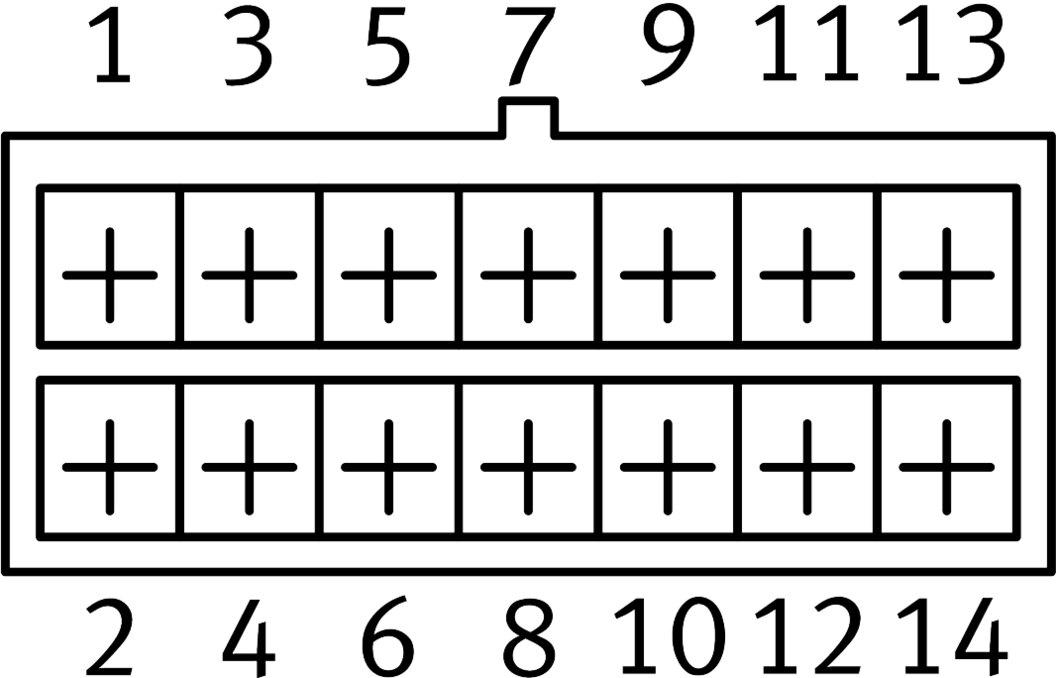

- Connection pattern L5
- Electrical connection 1, number of pins/wires
- 14
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
