Name: Festo 8156136 Stepper motor EMMB-ST-42-L-SMB
Brand: Festo

Stepper motor EMMB-ST-42-L-SMB

The Festo industrial component, part number 8156136, operates within an ambient temperature range of -15 °C to 40 °C, extendable up to 80 °C with a -2%/°C derating, and accommodates installation heights up to 4000 m. Built in accordance with IEC 60034, it features Thermal Class B, Rating Class S1, a maximum winding temperature of 130 °C, and digital motor temperature monitoring via BiSS-C. The unit conforms to motor types IM B5, IM V1, and IM V3 for any mounting position, providing IP20 protection with IP40 at the engine shaft alongside a 14-pin hybrid plug utilizing connection pattern L5 and interface code 42A. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this RoHS-compliant component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8156136
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8156136.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Ambient temperature: -15 °C...40 °C
Note on ambient temperature: up to 80°C with derating -2%/°C
Max. installation height: 4000 m
Information on max. installation height: with 1,000 m and longer only with derating of -1.0% per 100 m
Storage temperature: -20 °C...70 °C
Relative air humidity: 0 - 90% | Non-condensating
Conforms to standard: IEC 60034
Thermal class according to EN 60034-1: B
Max. winding temperature: 130 °C
Rating class according to EN 60034-1: S1
Temperature monitoring: Dig. Motor temperature per BiSS-C
Motor type as per EN 60034-7: IM B5 | IM V1 | IM V3
Mounting position: Any
Degree of protection: IP20
Note on degree of protection: IP40 engine shaft
Interface code, motor out: 42A

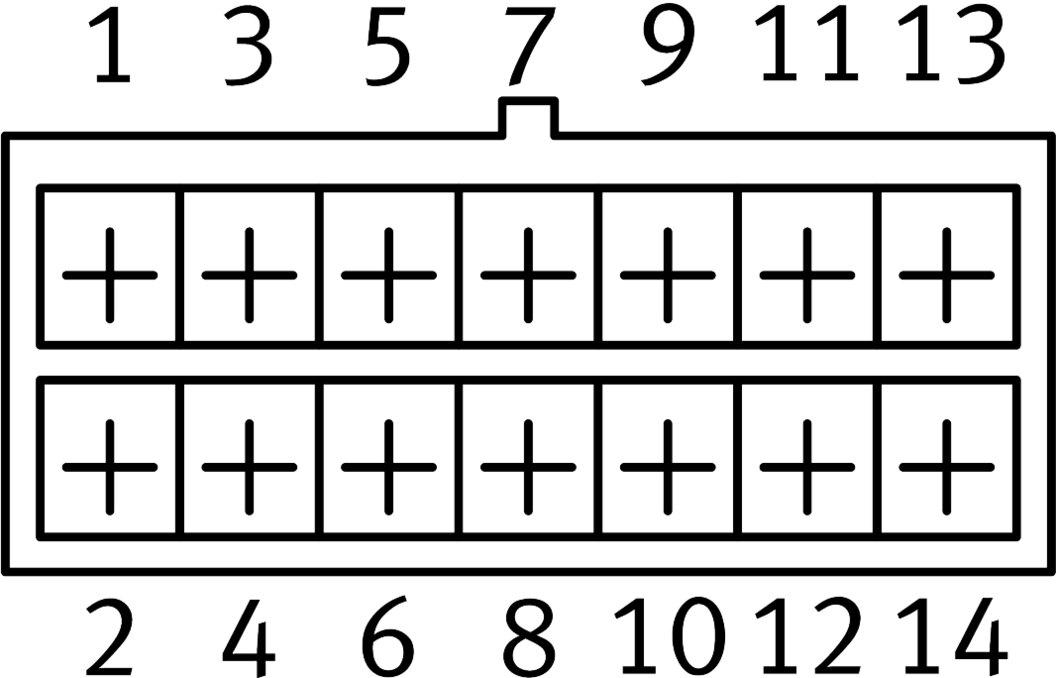

Electrical connection 1, connection type: Hybrid plug
Electrical connection 1, connection technology: Connection pattern L5
Electrical connection 1, number of pins/wires: 14
Note on materials: RoHS compliant
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Certication: RCM compliance mark | c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC
