Festo
8156146
Stepper motor EMMB-ST-57-L-SB
The Festo industrial component, part number 8156146, is an IM B5, IM V1, and IM V3 motor type conforming to standard IEC 60034 with Thermal Class B and Rating Class S1 according to EN 60034-1. It features an IP20 degree of protection with an IP40 engine shaft, a 14-pin hybrid plug electrical connection using connection pattern L10, and a 57A motor output interface code for mounting in any position. Operating parameters include an ambient temperature range of -15 °C to 40 °C—extendable up to 80 °C with a -2%/°C derating—a maximum installation height of 4000 m with derating above 1,000 m, and 0 to 90% non-condensating relative air humidity. RoHS compliant and designated with a corrosion resistance class of CRC 0, this unit includes a maximum winding temperature of 130 °C and storage temperatures between -20 °C and 70 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8156146
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8156146.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Ambient temperature
- -15 °C...40 °C
- Note on ambient temperature
- up to 80°C with derating -2%/°C
- Max. installation height
- 4000 m
- Information on max. installation height
- with 1,000 m and longer only with derating of -1.0% per 100 m
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 0 - 90% | Non-condensating
- Conforms to standard
- IEC 60034
- Thermal class according to EN 60034-1
- B
- Max. winding temperature
- 130 °C
- Rating class according to EN 60034-1
- S1
- Motor type as per EN 60034-7
- IM B5 | IM V1 | IM V3
- Mounting position
- Any
- Degree of protection
- IP20
- Note on degree of protection
- IP40 engine shaft
- Interface code, motor out
- 57A

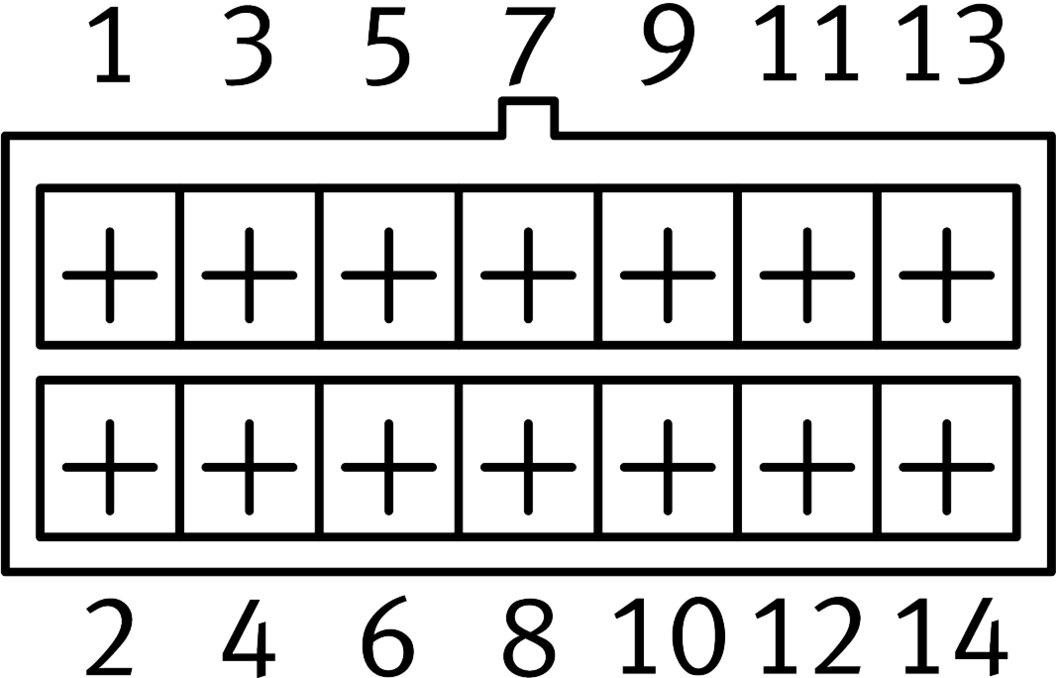

- Electrical connection 1, connection type
- Hybrid plug
- Electrical connection 1, connection technology
- Connection pattern L10
- Electrical connection 1, number of pins/wires
- 14
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Vibration resistance
- Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8156146. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
