Name: Festo 8156170 Stepper motor EMMT-ST-42-L-RB
Brand: Festo

Stepper motor EMMT-ST-42-L-RB

The Festo part number 8156170 is an industrial component featuring an IM B5, IM V1, and IM V3 motor type as per EN 60034-7 with an S1 rating class and thermal class B according to EN 60034-1. This RoHS-compliant unit offers an IP40 degree of protection on the engine shaft and IP65 for the motor housing including connection technology, utilizing an M17x0.75 hybrid plug electrical connection with 12 pins and wires. It operates within a standard ambient temperature range of -15 °C to 40 °C—extendable up to 80 °C with a -2%/°C derating—and supports installation heights up to 4000 m with specific derating above 1000 m. Submit your exact part number, quantity, and application requirements to receive a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8156170
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8156170.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Ambient temperature: -15 °C...40 °C
Note on ambient temperature: up to 80°C with derating -2%/°C
Max. installation height: 4000 m
Information on max. installation height: with 1,000 m and longer only with derating of -1.0% per 100 m
Storage temperature: -20 °C...70 °C
Relative air humidity: 0 - 90% | Non-condensating
Conforms to standard: IEC 60034
Thermal class according to EN 60034-1: B
Max. winding temperature: 130 °C
Rating class according to EN 60034-1: S1
Motor type as per EN 60034-7: IM B5 | IM V1 | IM V3
Mounting position: Any
Degree of protection: IP40
Note on degree of protection: IP40 engine shaft | IP65 for motor housing, incl. connection technology
Interface code, motor out: 42A

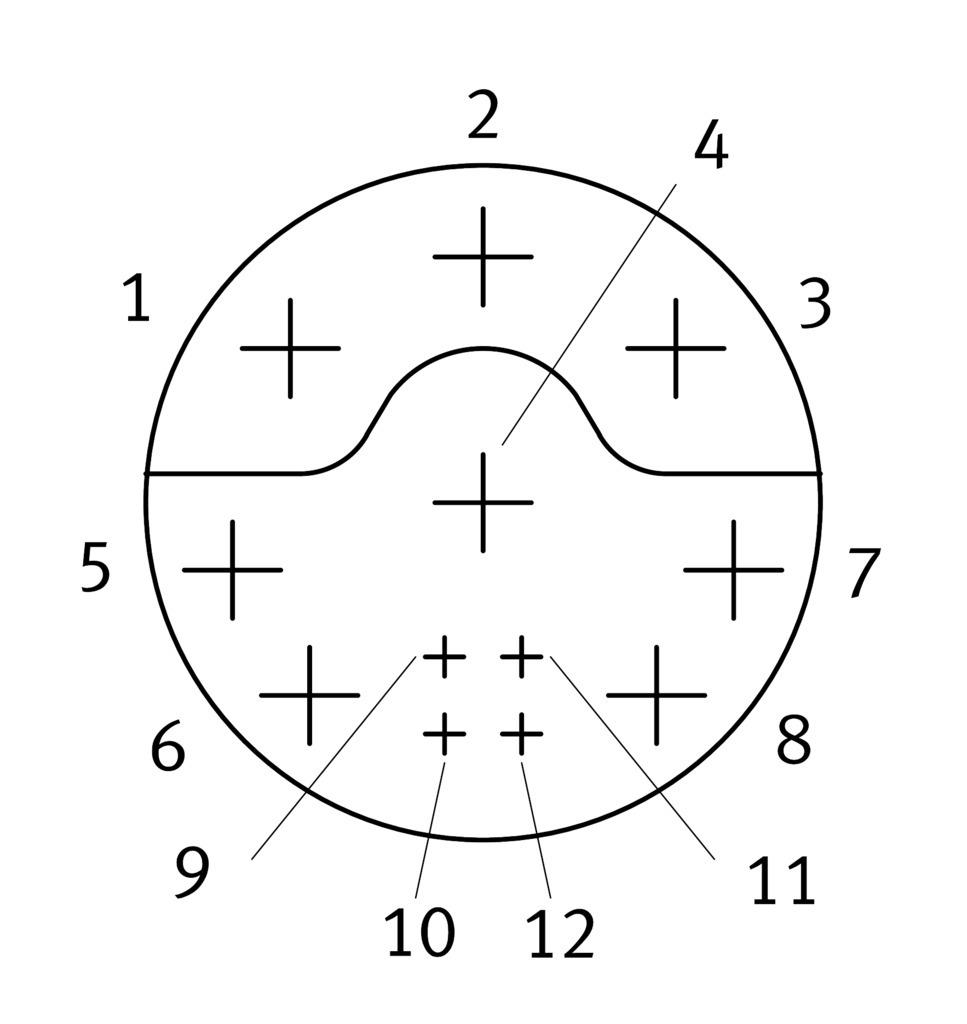

Electrical connection 1, connection type: Hybrid plug
Electrical connection 1, connection technology: M17x0.75
Electrical connection 1, number of pins/wires: 12
Note on materials: RoHS compliant
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Vibration resistance: Transport application test with severity level 2 as per FN 942017-4 and | EN 60068-2-6
Shock resistance: Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
Certication: RCM compliance mark | c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive
