Name: Festo 8156703 Adapter SASC-F5-A-M12-S
Brand: Festo

Adapter SASC-F5-A-M12-S

Engineered by Festo under part number 8156703, this industrial component features an M12x1 A-coded 5-pin socket with a straight cable outlet and screw-type lock conforming to EN 61076-2-101. The unit operates within a 0 V to 30 V AC and DC range, offering an IP65 degree of protection across an ambient temperature span of -25 °C to 85 °C. Weighing 30 g, it provides CRC 1 low corrosion stress resistance, ISO 14644-1 Class 4 cleanroom suitability, and compliance with EU and UK RoHS directives. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8156703
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8156703.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Conforms to standard: EN 61076-2-101
Operating voltage range AC: 0 V...30 V
DC operating voltage range: 0 V...30 V
CE marking (see declaration of conformity): As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK RoHS instructions
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
Degree of protection: IP65
Ambient temperature: -25 °C...85 °C
Product weight: 30 g
Electrical connection 1, function: Field device side
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Straight
Electrical connection 1, design: Round
Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 5
Electrical connection 1, occupied pins/wires: 4
Electrical connection 1, type of mounting: Screw-type lock with hexagon AF13 and vertical knurling | Rotatable | Compatible with rotatable/non-rotatable screw-type lock

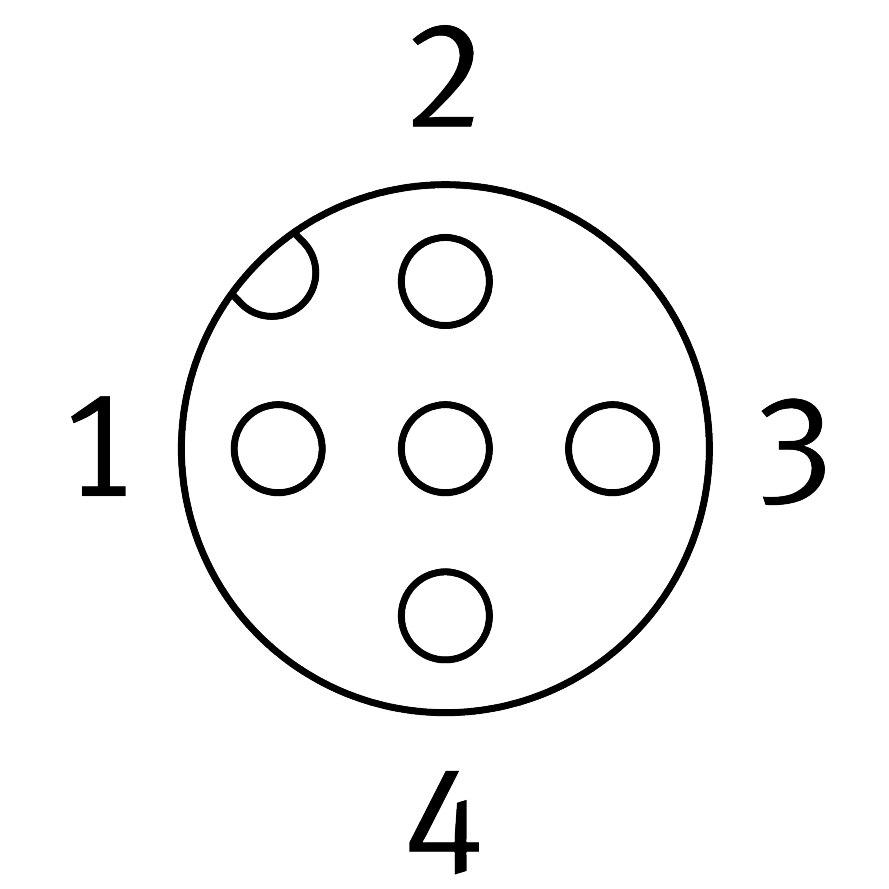

Electrical connection 1, terminal allocation: Pin 1 = BN | Pin 2 = WH | Pin 3 = BU | Pin 4 = BK
Electrical connection 1, display: None
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Plug
Electrical connection 2, cable outlet: Straight
Electrical connection 2, design: Round
