Festo
8157276

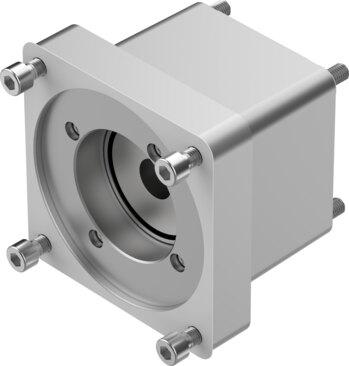

Axial kit EAMM-A-D100-150A-S1
Engineered by Festo with part number 8157276, this industrial component weighs 3444 g and features a nominal length of 103 mm with mounting position flexibility in any orientation. The unit delivers a transferable torque of 143 Nm, a mass moment of inertia of 280 kgmm², and a maximum rotational speed of 4500 rpm while maintaining an IP65 degree of protection, VDMA24364-B2-L LABS conformity, and RoHS compliance. It accommodates actuator interface code D100 and motor-in interface codes 140A or 150A, operating within ambient temperatures from -10 °C to 60 °C, storage temperatures from -25 °C to 60 °C, and a relative air humidity of 0 to 95%. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8157276
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8157276.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 103 mm
- Mounting position
- Any
- Max. rotational speed
- 4500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP65
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 280 kgmm²
- Transferable torque
- 143 Nm
- Product weight
- 3444 g
- Interface code, actuator
- D100
- Interface code, motor in
- 140A | 150A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8157276. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
