Festo
8157279

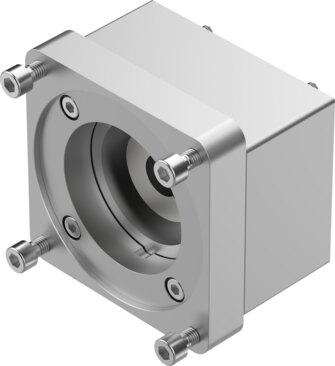

Axial kit EAMM-A-S95-150A-G2
The Festo 8157279 industrial component features a nominal length of 85.5 mm, an S95 actuator interface code, and 140A or 150A motor-in interface codes. This RoHS compliant part delivers a transferable torque of 60 Nm, a maximum rotational speed of 5500 rpm, and a mass moment of inertia of 128 kgmm², weighing 3768 g with an IP40 degree of protection for any mounting position. Operating within an ambient temperature range of -10 °C to 60 °C, relative air humidity of 0 to 95 percent, and storage temperatures from -25 °C to 60 °C, it conforms to VDMA24364-B2-L LABS (PWIS) standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8157279
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8157279.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 85.5 mm
- Mounting position
- Any
- Max. rotational speed
- 5500 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 128 kgmm²
- Transferable torque
- 60 Nm
- Product weight
- 3768 g
- Interface code, actuator
- S95
- Interface code, motor in
- 140A | 150A
- Note on materials
- RoHS compliant
