Festo
8157283

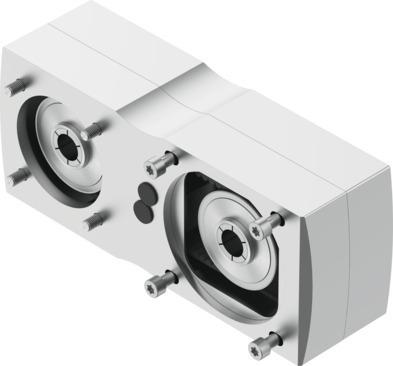

Parallel kit EAMM-U-145-D100-150A-188
The Festo 8157283 industrial component features a size of 145 and a 1:1 gear ratio with a transferable torque of 50 Nm and a no-load driving torque of 2 Nm. This unit accommodates a maximum rotational speed of 4000 rpm, a mass moment of inertia of 2255 kgmm², and weighs 11400 g while maintaining an IP40 degree of protection and VDMA24364 Zone III LABS conformity. It operates within an ambient temperature range of -10 °C to 60 °C, supports storage temperatures from -25 °C to 60 °C at 0 to 95% relative air humidity, utilizes actuator interface code D100B with motor-in interface codes 140A or 150A, includes RoHS compliant materials, and supports any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8157283
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8157283.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 145
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 4000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 2255 kgmm²
- No-load driving torque
- 2 Nm
- Transferable torque
- 50 Nm
- Product weight
- 11400 g
- Interface code, actuator
- D100B
- Interface code, motor in
- 140A | 150A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8157283. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
