Festo
8157642

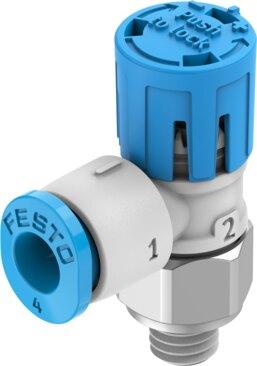

One-way flow control valve VFOE-LE-T-M5-Q4-F1A
The Festo part number 8157642 is an industrial component featuring an exhaust air flow control non-return function with a QS-4 pneumatic connection 1 and an M5 pneumatic connection 2. It utilizes a manual actuation type with a rotary knob with latch adjusting element, supports screw-in mounting in any position, and operates within an ambient temperature range of -10 °C to 60 °C. Housed in PBT, this component provides a standard nominal flow rate of 90 l/min in the flow control direction and 50 l/min to 90 l/min in the non-return direction, while offering explosion protection for ATEX Zones 1, 2, 21, and 22 in accordance with certificate documentation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8157642
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8157642.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Exhaust air ow control non-return function
- Pneumatic connection 1
- QS-4
- Pneumatic connection 2
- M5
- Actuation type
- Manual
- Adjusting element
- Rotary knob with latch
- Type of mounting
- Screw-in
- Standard nominal ow rate in ow control direction
- 90 l/min
- Standard nominal ow rate in non-return direction
- 50 l/min...90 l/min
- Ambient temperature
- -10 °C...60 °C
- Housing material
- PBT
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Mounting position
- Any
- Width across ats
- 9 mm
- Rotatability
- 360 deg/continuous swiveling not permissible
- Variants
- Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
- Operating pressure for entire temperature range
- 0.02 MPa...1 MPa | 0.2 bar...10 bar | 2.9 psi...145 psi
- Standard ow rate in ow control direction 6 -> 0 bar
- 150 l/min
- Standard ow rate in non-return direction at 6 -> 0 bar
- 130 l/min...160 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
