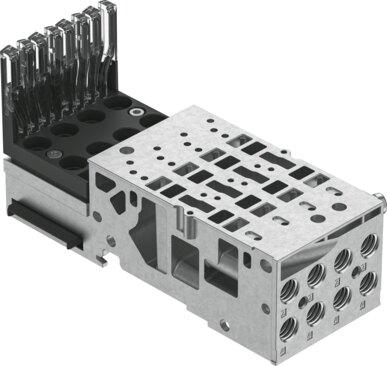

Name: Festo 8157739 Sub-base VMPA1-AP-4-EMG-8-S
Brand: Festo

Sub-base VMPA1-AP-4-EMG-8-S

The Festo 8157739 is an industrial component featuring a die-cast aluminum sub-base with a width of 42 mm, a length of 107.3 mm, a width dimension of 10.5 mm, and a product weight of 180 g. Designed to support a maximum of 4 valve positions, this part operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), utilizing M7 pneumatic connections for ports 2 and 4. It meets VDMA24364 Zone III LABS conformity with a CRC of 0, conforms to RoHS material regulations, and functions within a storage temperature of -20 °C to 60 °C and an ambient temperature of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8157739
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8157739.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 42 mm
Length: 107.3 mm
Width dimension: 10.5 mm
Max. no. of valve positions: 4
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Pilot pressure MPa: 0.3 MPa...0.8 MPa
Pilot pressure: 3 bar...8 bar
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Storage temperature: -20 °C...60 °C
Ambient temperature: -5 °C...50 °C
Product weight: 180 g
Pneumatic connection 2: M7
Pneumatic connection 4: M7
Note on materials: RoHS compliant
Material of sub-base: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8157739. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
