Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

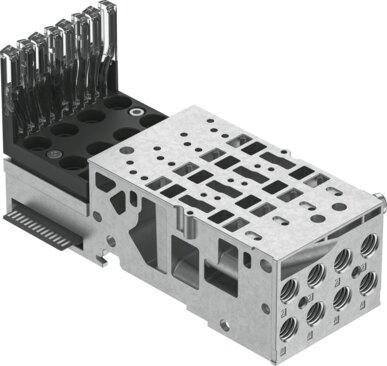

Reference imageConfirm configuration by manufacturer part number.
Festo
8157742
Sub-base VMPA14-AP-4-EMG-D2-8-S
This Festo industrial component, part number 8157742, is constructed with a die-cast aluminum sub-base and features a width of 65.5 mm, a length of 107.3 mm, a width dimension of 14 mm, and a product weight of 320 g. It supports a maximum of 4 valve positions, operating pressures from -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), and pilot pressures from 0.3 MPa to 0.8 MPa (3 bar to 8 bar), utilizing G1/8 pneumatic connections 2 and 4. The unit has a corrosion resistance class of CRC 0, VDMA24364 Zone III LABS conformity, RoHS compliant materials, a storage temperature range of -20 °C to 60 °C, and an ambient temperature range of -5 °C to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8157742
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8157742.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 65.5 mm
- Length
- 107.3 mm
- Width dimension
- 14 mm
- Max. no. of valve positions
- 4
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 320 g
- Pneumatic connection 2
- G1/8
- Pneumatic connection 4
- G1/8
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8157742. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
