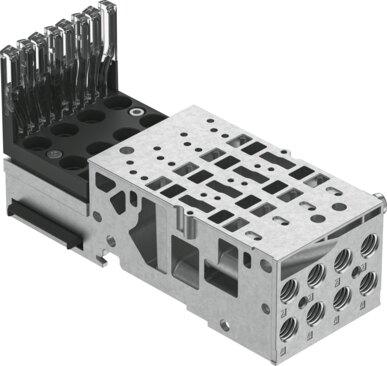

Name: Festo 8157743 Sub-base VMPA1-AP-4-EMM-8-SK
Brand: Festo

Sub-base VMPA1-AP-4-EMM-8-SK

The Festo part number 8157743 is an industrial component featuring a die-cast aluminum sub-base with a product weight of 180 g, a width of 42 mm, a length of 107.3 mm, and a width dimension of 10.5 mm. It accommodates a maximum of four valve positions and supports an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) alongside a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar). Equipped with M7 pneumatic connections 2 and 4, this RoHS-compliant assembly adheres to VDMA24364 Zone III LABS conformity with a CRC rating of 0, functioning within an ambient temperature range of -5 °C to 50 °C and storage temperatures from -20 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this item.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8157743
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8157743.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width: 42 mm
Length: 107.3 mm
Width dimension: 10.5 mm
Max. no. of valve positions: 4
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Pilot pressure MPa: 0.3 MPa...0.8 MPa
Pilot pressure: 3 bar...8 bar
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Storage temperature: -20 °C...60 °C
Ambient temperature: -5 °C...50 °C
Product weight: 180 g
Pneumatic connection 2: M7
Pneumatic connection 4: M7
Note on materials: RoHS compliant
Material of sub-base: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8157743. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
