Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8158123

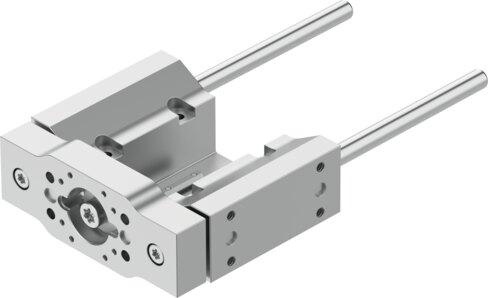

Guide unit EAGF-P2-KF-45-100
The Festo part number 8158123 is an industrial guide component featuring a size of 45 and a 100 mm stroke with a recirculating ball bearing guide and 0 µm reversing backlash. Designed for any mounting position, this unit supports a maximum speed of 1 m/s, a maximum acceleration of 25 m/s², maximum dynamic forces of 320 N for Fy and Fz, and maximum dynamic moments of 15 Nm for Mx and 10 Nm for My within an ambient temperature range of 0 °C to 60 °C. It carries an IP40 degree of protection, CRC 0 corrosion resistance, and VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8158123
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8158123.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 45
- Stroke
- 100 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Max. acceleration
- 25 m/s²
- Max. speed
- 1 m/s
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Max. force Fy
- 320 N
- Max. force Fy static
- 415 N
- Max. force Fz
- 320 N
- Max. force Fz static
- 415 N
- Max. torque Mx
- 15 Nm
- Max. static moment Mx
- 19 Nm
- Max. torque My
- 10 Nm
- Max. static moment My
- 12 Nm
- Max. torque Mz
- 10 Nm
- Max. static moment Mz
- 12 Nm
- Displacement force
- 2 N
- Moving mass at 0 mm stroke
- 342 g
- Basic weight with 0 mm stroke
- 1037 g
- Additional weight per 10 mm stroke
- 12.3 g
- Additional moving mass per 10 mm stroke
- 12.3 g
- Center of gravity of moving mass with 0 mm stroke
- 25 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.3 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8158123. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
