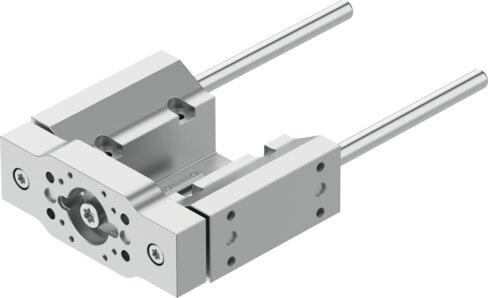

Reference imageConfirm configuration by manufacturer part number.
Festo
8158133
Guide unit EAGF-P2-KF-45-
Engineered with a size 45 structural design and a recirculating ball bearing guide, this Festo industrial component part number 8158133 accommodates a stroke range of 1 mm to 300 mm with 0 µm reversing backlash. The unit operates in any mounting position within an ambient temperature range of 0 °C to 60 °C, delivering a maximum speed of 1 m/s and a maximum acceleration of 25 m/s². It withstands maximum dynamic forces of 320 N for Fy and Fz, static forces of 415 N, dynamic moments up to 15 Nm for Mx and 10 Nm for My, and static moments of 19 Nm for Mx and 12 Nm for My. Featuring IP40 protection, CRC 0 corrosion resistance, and VDMA24364 Zone III LABS conformity, please submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8158133
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8158133.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 45
- Stroke
- 1 mm...300 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Max. acceleration
- 25 m/s²
- Max. speed
- 1 m/s
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Max. force Fy
- 320 N
- Max. force Fy static
- 415 N
- Max. force Fz
- 320 N
- Max. force Fz static
- 415 N
- Max. torque Mx
- 15 Nm
- Max. static moment Mx
- 19 Nm
- Max. torque My
- 10 Nm
- Max. static moment My
- 12 Nm
- Max. torque Mz
- 10 Nm
- Max. static moment Mz
- 12 Nm
- Displacement force
- 2 N
- Moving mass at 0 mm stroke
- 342 g
- Basic weight with 0 mm stroke
- 1037 g
- Additional weight per 10 mm stroke
- 12.3 g
- Additional moving mass per 10 mm stroke
- 12.3 g
- Center of gravity of moving mass with 0 mm stroke
- 25 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.3 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8158133. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
