Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

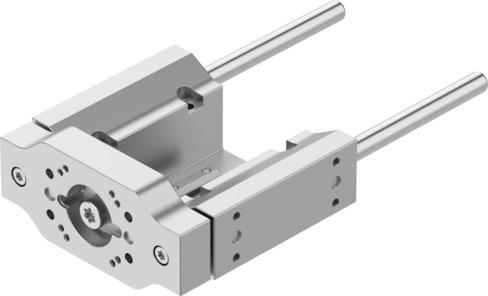

Reference imageConfirm configuration by manufacturer part number.
Festo
8158150
Guide unit EAGF-P2-KF-60-
The Festo 8158150 is a structural guide component of size 60 featuring a recirculating ball bearing guide and 0 µm reversing backlash for any mounting position. It accommodates a stroke range of 1 mm to 500 mm while delivering a maximum acceleration of 25 m/s², a maximum speed of 1 m/s, and operating within an ambient temperature range of 0 °C to 60 °C. Rated for an IP40 degree of protection with a CRC of 0 and VDMA24364 Zone III LABS conformity, this unit handles maximum dynamic forces of 380 N for Fy and Fz, static forces of 510 N, dynamic moments up to 20 Nm for Mx and 15 Nm for My, and static moments of 27 Nm for Mx and 20 Nm for My. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8158150
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8158150.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 60
- Stroke
- 1 mm...500 mm
- Reversing backlash
- 0 µm
- Mounting position
- Any
- Guide
- Recirculating ball bearing
- Structural design
- Guide
- Max. acceleration
- 25 m/s²
- Max. speed
- 1 m/s
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Max. force Fy
- 380 N
- Max. force Fy static
- 510 N
- Max. force Fz
- 380 N
- Max. force Fz static
- 510 N
- Max. torque Mx
- 20 Nm
- Max. static moment Mx
- 27 Nm
- Max. torque My
- 15 Nm
- Max. static moment My
- 20 Nm
- Max. torque Mz
- 15 Nm
- Max. static moment Mz
- 20 Nm
- Displacement force
- 3 N
- Moving mass at 0 mm stroke
- 583 g
- Basic weight with 0 mm stroke
- 1614 g
- Additional weight per 10 mm stroke
- 17.8 g
- Additional moving mass per 10 mm stroke
- 17.8 g
- Center of gravity of moving mass with 0 mm stroke
- 31 mm
- Center of gravity of moving mass with 10 mm stroke
- 4.3 mm
- Type of mounting
- With internal thread
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8158150. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
