Festo
8158417

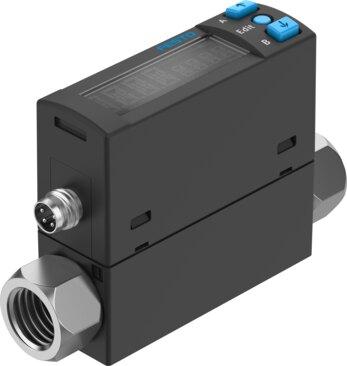

Flow sensor SFAH-200B-G14FS-PNLK-PNVBA-M8
The Festo 8158417 is an industrial component utilizing a thermal heat transfer measuring principle to monitor mass flow and volumetric flow rate across a bidirectional flow direction. It features a flow measuring range from 4 l/min to 200 l/min, an operating pressure of -0.9 bar to 10 bar, and compatibility with compressed air as per ISO 8573-1:2010 [6:4:4], argon, and nitrogen. This component holds RCM compliance, c UL us - Listed (OL), CE, and UKCA markings while being RoHS compliant with a medium and ambient temperature range of 0 °C to 50 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8158417
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8158417.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Mass ow | Volumetric ow rate
- Flow direction
- Bidirectional
- Measuring principle
- Thermal
- Method of measurement
- Heat transfer
- Flow measuring range start value
- 4 l/min
- Flow measuring range end value
- 200 l/min
- Operating pressure
- -0.9 bar...10 bar
- Operating medium
- Argon | Compressed air as per ISO 8573-1:2010 [6:4:4] | Nitrogen
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Nominal temperature
- 23 °C
- Accuracy of ow rate
- ± (2% o.m.v. + 1% FS)
- Zero point repetition accuracy in ± %FS
- 0.2 %FS
- Repetition accuracy margin in ± %FS
- 0.8 %FS
- Temperature co-efficient margin in ± %FS/K
- typ. 0.15%FS/K
- Pressure inuence of margin in ±%FS/bar
- 1 %FS/b.
- Switching output
- 2 x PNP or 2 x NPN switchable
- Switching function
- Window comparator | Threshold value comparator | Auto difference monitoring
- Switching element function
- N/C contact/N/O contact, switchable
- Max. output current
- 100 mA
- Analog output
- 0 - 10 V | 4 - 20 mA
