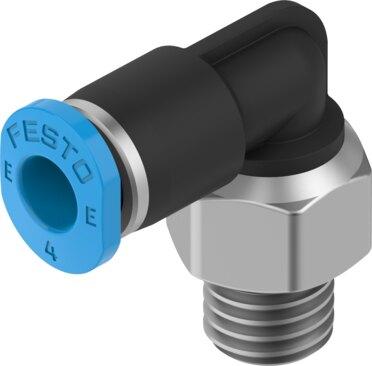

Name: Festo 8158777 Push-in fitting NPQE-L-M7-Q4-F1A-P10
Brand: Festo

Push-in fitting NPQE-L-M7-Q4-F1A-P10

The Festo 8158777 is a mini L-shaped industrial component featuring a 2.3 mm nominal width, an external hexagon SW10 for mounting, and a sealing ring on the screwed plug with a nominal tightening torque of 2 Nm at a ±5% tolerance. Designed with a push-pull principle structure for any mounting position, this part operates across a pressure range of -0.095 MPa to 0.8 MPa (-0.95 bar to 8 bar, -13.775 psi to 116 psi) and an ambient temperature of -5 °C to 60 °C using compressed air as per ISO 8573-1:2010 [7:4:4]. Each pack contains 10 units with a product weight of 5.19 g each, featuring VDMA24364 Zone III LABS conformity, ISO 14644-1 Class 4 cleanroom suitability, and suitability for Li-ion battery production with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8158777
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8158777.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Mini
Nominal width: 2.3 mm
Type of seal on screwed plug: Sealing ring
Mounting position: Any
Design: L-shape
Pack size: 10
Structural design: Push-pull principle
Variants: Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
Operating pressure for entire temperature range: -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
Ambient temperature: -5 °C...60 °C
Nominal tightening torque: 2 Nm
Tolerance for nominal tightening torque: ±5%
Product weight: 5.19 g
Type of mounting: External hexagon SW10
Pneumatic connection 1: External thread M7
Pneumatic connection 2: for pneumatic tubing outside diameter 4 mm
Releasing ring color: Blue
Note on materials: RoHS compliant
Housing material: PBT | high-alloy stainless steel
Material of threaded seal: NBR | high-alloy stainless steel
