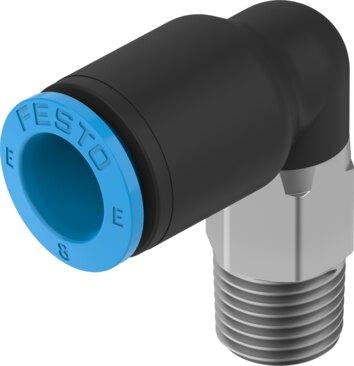

Name: Festo 8158781 Push-in fitting NPQE-L-R18-Q8-F1A-P10
Brand: Festo

Push-in fitting NPQE-L-R18-Q8-F1A-P10

The Festo part number 8158781 is a standard, L-shaped industrial component featuring a 6 mm nominal width and a push-pull structural design with an R1/8 external thread and an external hexagon SW10 mounting type for 8 mm outside diameter pneumatic tubing. This component operates within a pressure range of -0.095 MPa to 0.8 MPa and a temperature range of -5 °C to 60 °C using compressed air compliant with ISO 8573-1:2010 [7:4:4], while incorporating a coated screwed plug seal and offering VDMA24364 Zone III LABS conformity with ISO 14644-1 Class 4 cleanroom suitability. Each pack contains 10 units weighing 8.07 g each, which are suitable for battery production with reduced Cu/Zn/Ni values and feature a corrosion resistance class of 1. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8158781
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8158781.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Standard
Nominal width: 6 mm
Type of seal on screwed plug: Coating
Mounting position: Any
Design: L-shape
Pack size: 10
Structural design: Push-pull principle
Variants: Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
Operating pressure for entire temperature range: -0.095 MPa...0.8 MPa | -0.95 bar...8 bar | -13.775 psi...116 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Lubricated operation possible
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
Ambient temperature: -5 °C...60 °C
Product weight: 8.07 g
Type of mounting: External hexagon SW10
Pneumatic connection 1: External thread R1/8
Pneumatic connection 2: for pneumatic tubing outside diameter 8 mm
Releasing ring color: Blue
Note on materials: RoHS compliant
Housing material: PBT | high-alloy stainless steel
Material of threaded seal: PTFE
Releasing ring material: POM
Material of tubing seal: NBR
Material of tube retaining claw: high-alloy stainless steel

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8158781. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
