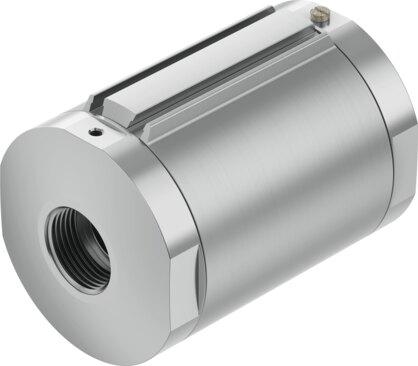

Reference imageConfirm configuration by manufacturer part number.
Festo
8159107
Pinch valve VZQA-C-M22C-25-GG-ALALE-5-T28
The Festo 8159107 is a pneumatically operated, soft-sealing pinch valve featuring an in-line installation design with a G1 fitting connection and a nominal width DN of 25. This externally controlled 2/2-way closed monostable valve operates with a medium pressure range of 0 MPa to 0.5 MPa, an operating pressure of 0.35 MPa to 0.6 MPa, and handles media with a maximum viscosity of 4000 mm²/s using compressed air or water. Vacuum testing is validated up to -0.09 MPa at room temperature, while actuation relies on an M5 auxiliary pilot air port using compressed air conforming to ISO 8573-1:2010 [7:4:1] with a mechanical spring reset method. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8159107
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8159107.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Pinch valve, pneumatically operated
- Actuation type
- Pneumatic
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- G1
- Nominal width DN
- 25
- Valve function
- 2/2-way, closed, monostable
- Flow direction
- Reversible
- Medium pressure
- 0 MPa...0.5 MPa | 0 bar...5 bar | 0 psi...72.5 psi
- Note on the medium pressure
- Use in the vacuum range was tested up to -0.09 MPa with the air at | room temperature. Depending on the application, a counter-vacuum | may have to be created on the control side to guarantee the media ow.
- Operating pressure
- 0.35 MPa...0.6 MPa | 3.5 bar...6 bar | 50.75 psi...87 psi
- Nominal pressure of tting PN
- 10
- Burst pressure
- 1.6 MPa | 16 bar | 232 psi
- Reset method
- Mechanical spring
- Type of control
- Externally controlled
- Auxiliary pilot air port 12
- M5
- Pilot medium
- Compressed air as per ISO 8573-1:2010 [7:4:1]
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:1] | Water
- Max. viscosity
- 4000 mm²/s
