Festo
8159471

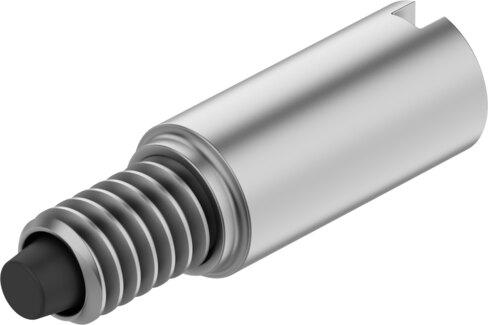

Shock absorber DYEF-G8-S-M5-Y1
The Festo 8159471 industrial component features an M5 size with a 1.5 mm stroke and utilizes elastic cushioning rings or pads at both ends without a fixed metal stop. Built with a high-alloy steel housing, NBR seals, and a threaded sleeve for mounting, this RoHS-compliant unit weighs 4.8 g and operates within an ambient temperature range of 0 °C to 60 °C. It provides a maximum tightening torque of 0.8 Nm, a maximum energy absorption per stroke of 0.05 J, and a maximum impact velocity of 0.8 m/s, along with CRC 2 moderate corrosion stress resistance and VDMA24364-B2-L LABS conformity for any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8159471
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8159471.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M5
- Stroke
- 1.5 mm
- Cushioning
- Elastic cushioning rings/pads at both ends, without xed metal stop
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 0.8 m/s
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 1.5 mm
- Max. tightening torque
- 0.8 Nm
- Max. energy absorption per stroke
- 0.05 J
- Product weight
- 4.8 g
- Type of mounting
- With threaded sleeve
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- High-alloy steel
