Festo
8159472

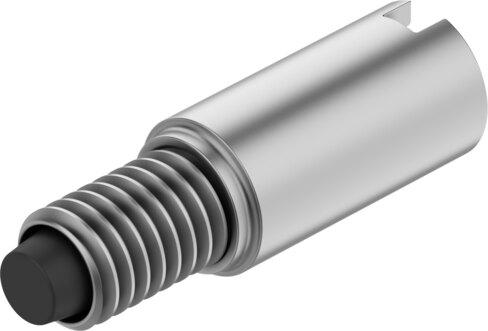

Shock absorber DYEF-G8-S-M6-Y1
The Festo 8159472 is an industrial component featuring an M6 size, a 1.5 mm stroke, and a 6.9 g product weight with a high-alloy steel housing and NBR seals. It incorporates elastic cushioning rings at both ends without a fixed metal stop, delivering a maximum energy absorption of 0.08 J per stroke at an impact velocity up to 0.8 m/s. Designed for mounting via threaded sleeve in any position, this RoHS-compliant unit operates within an ambient temperature range of 0 °C to 60 °C under moderate corrosion stress. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8159472
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8159472.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- M6
- Stroke
- 1.5 mm
- Cushioning
- Elastic cushioning rings/pads at both ends, without xed metal stop
- Mounting position
- Any
- Position sensing
- None
- Max. impact velocity
- 0.8 m/s
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Cushioning length
- 1.5 mm
- Max. tightening torque
- 1 Nm
- Max. energy absorption per stroke
- 0.08 J
- Product weight
- 6.9 g
- Type of mounting
- With threaded sleeve
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Housing material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8159472. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
